JEEP
Wrangler
1986 - 1995
A.K.A. The Young Jeep, The Jurassic Park Jeep
ASSEMBLY: Toledo, OH, USA
UNITS PRODUCED: 685,000
YJ
The YJ was the first jeep to bear the 'Wrangler' name. It succeeded the CJ series, and featured a redesigned body with controversial squared-off headlights. The YJ cemented its status in pop-culture with the 1993 film 'Jurassic Park', which featured various YJ models throughout.

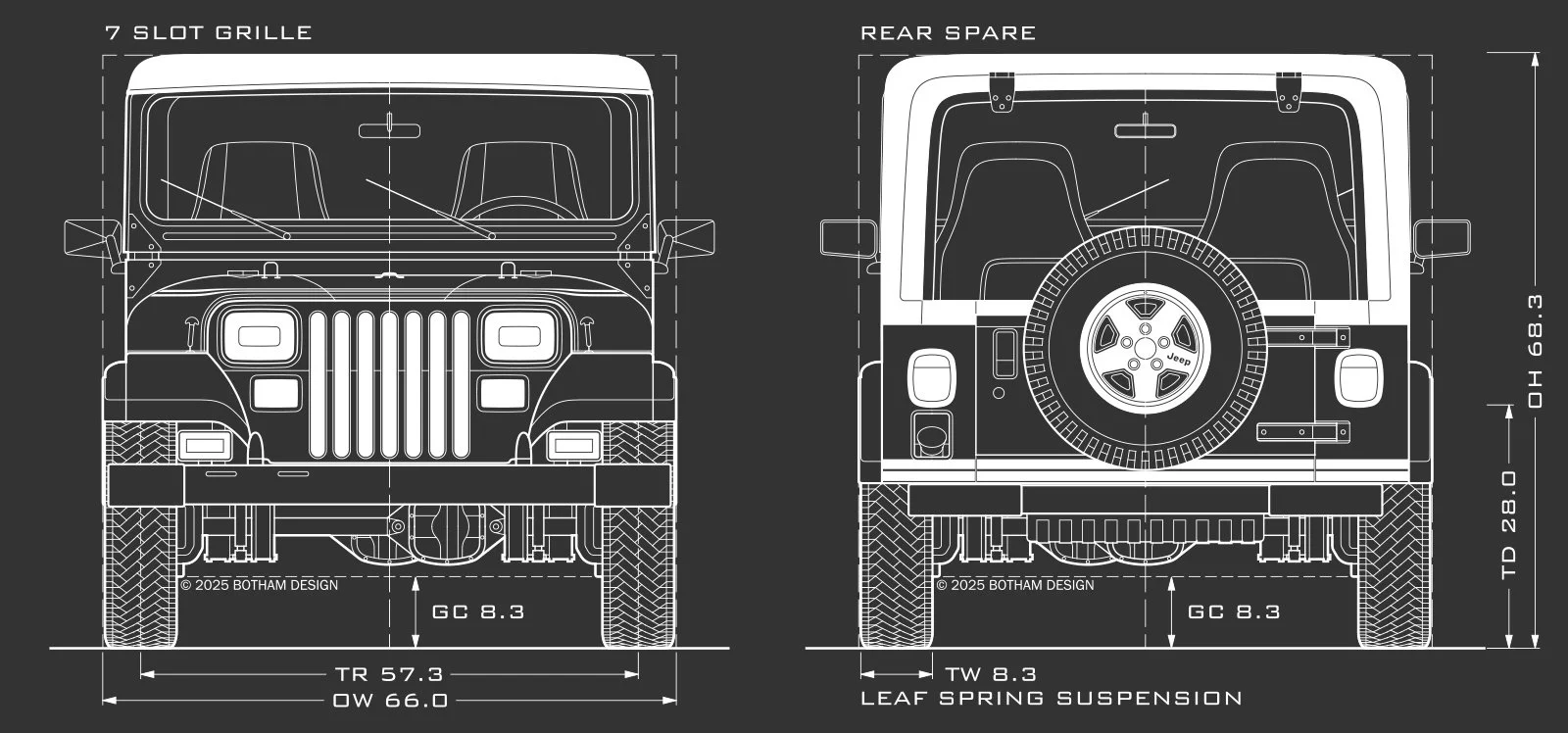

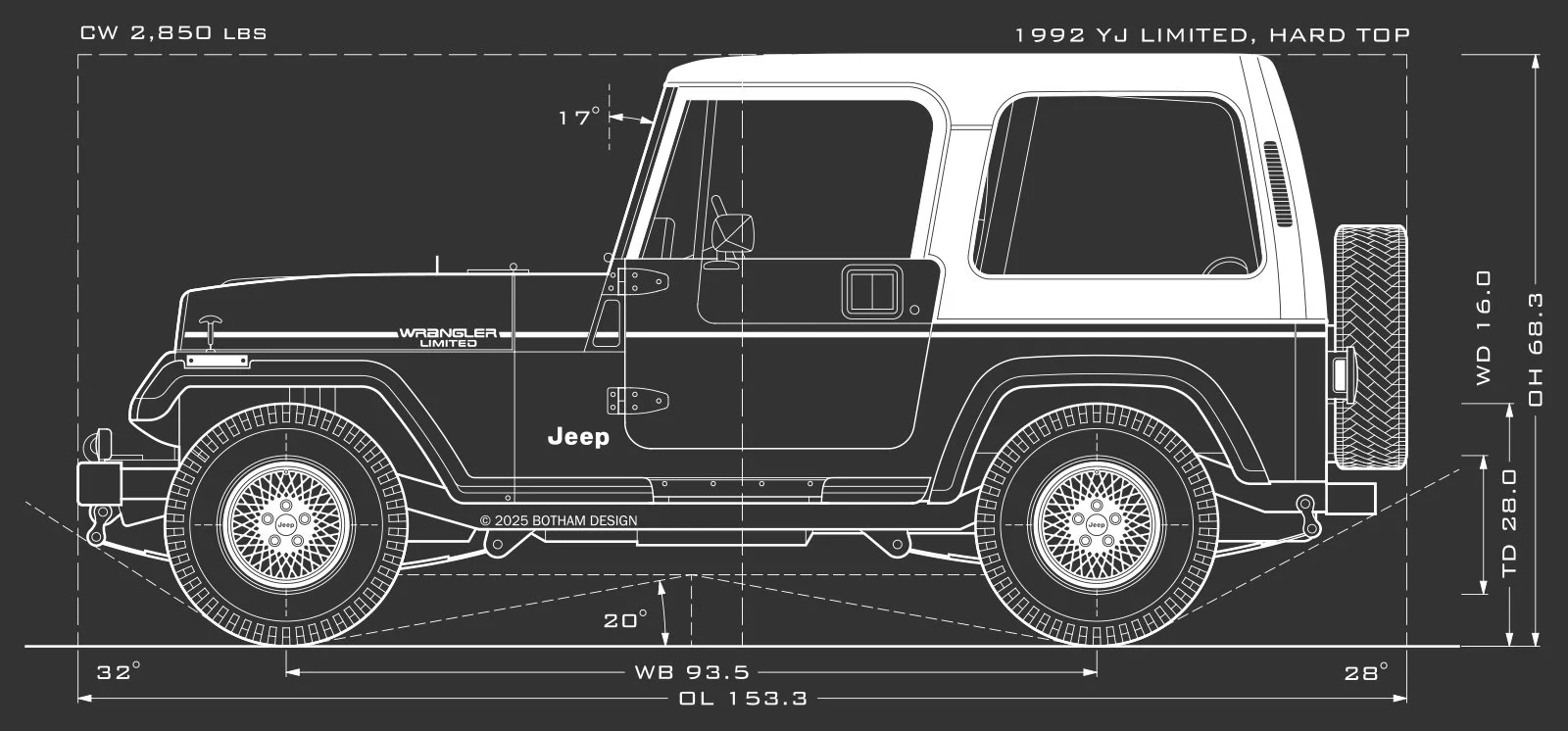

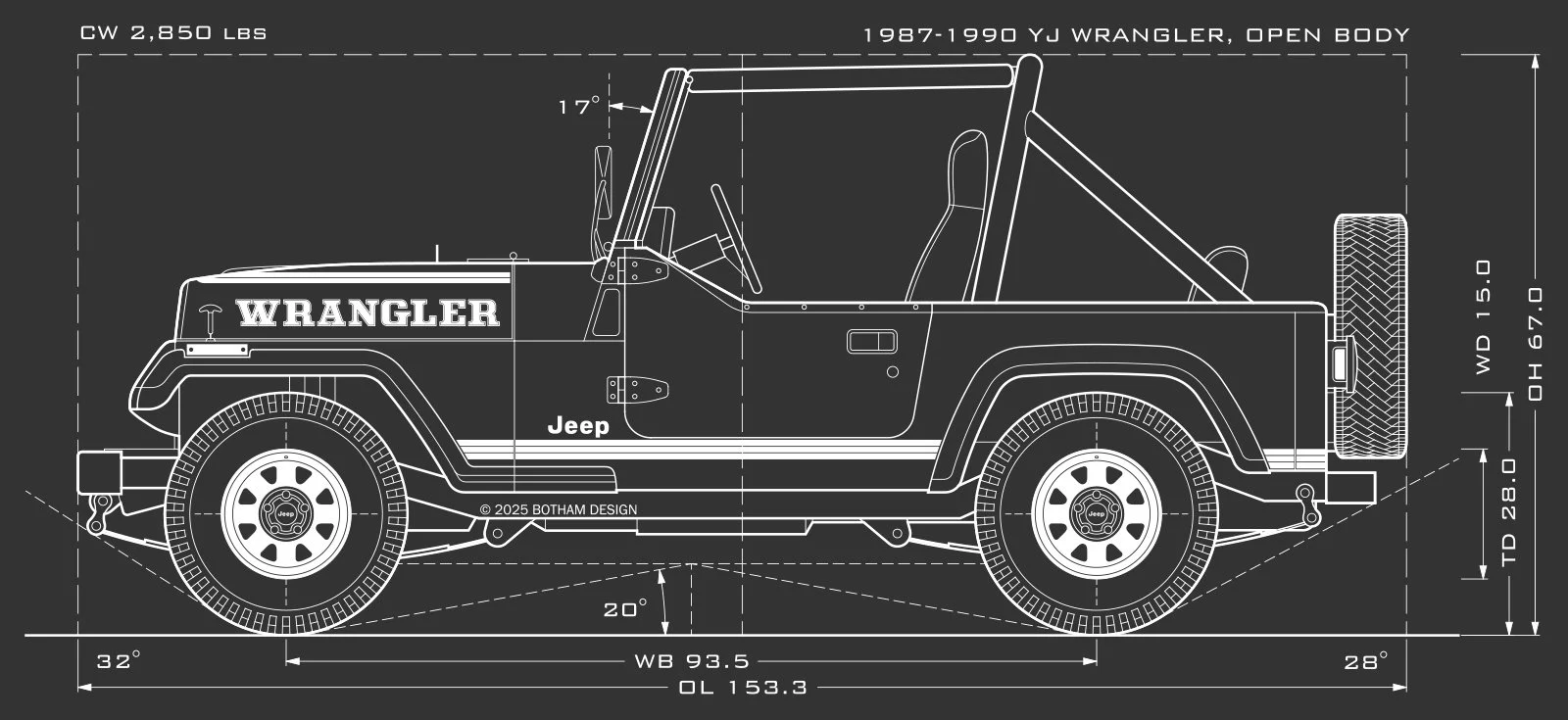

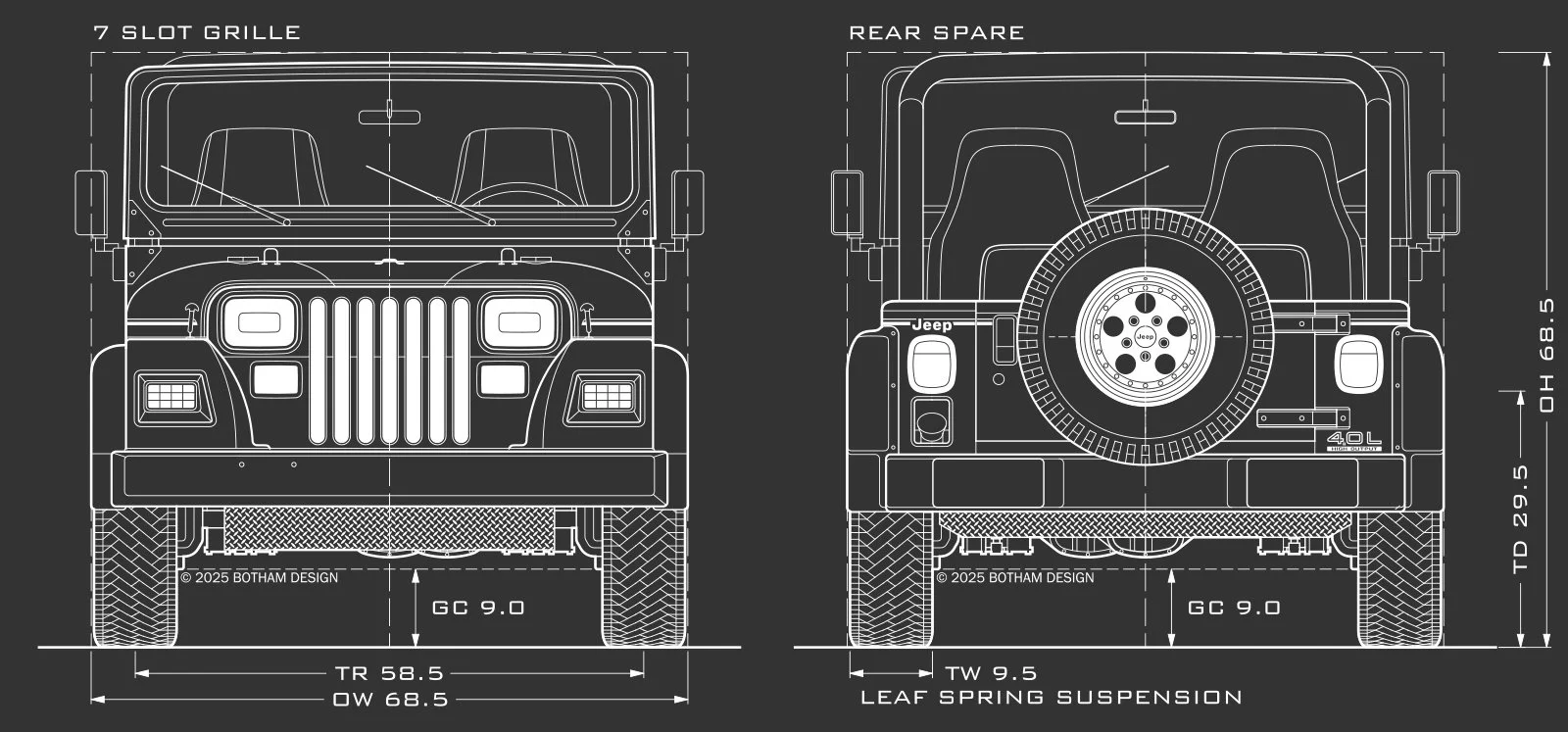

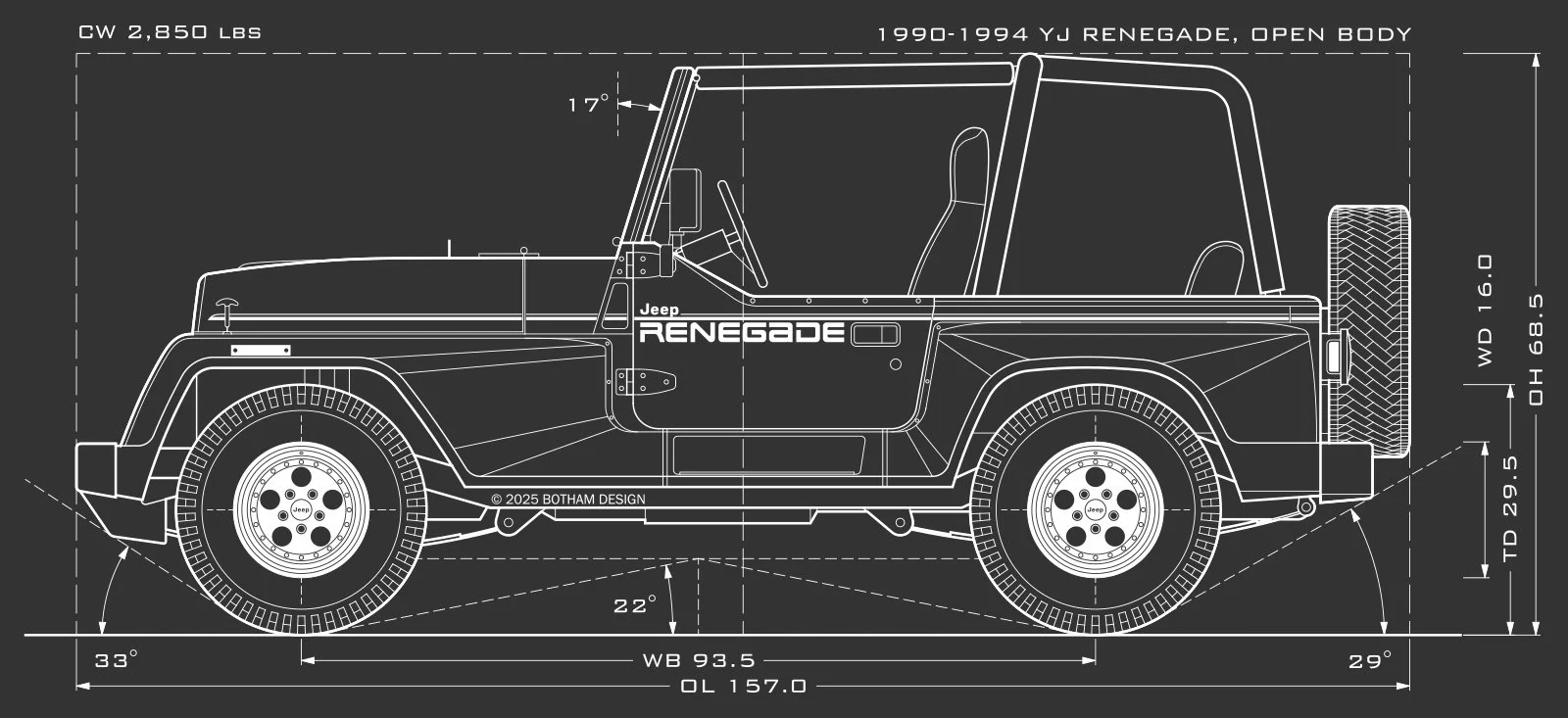

JEEP YJ SPECS
MAIN SPECS
OVERALL LENGTH (OL): 152.9
OVERALL WIDTH (OW): 66.0
OVERALL HEIGHT (OH), HARD TOP: 70.3
OVERALL HEIGHT (OH), SOFT TOP: 70.0
OVERALL HEIGHT (OH), MIN: 68.8
WHEELBASE (WB): 93.4
TRACK WIDTH (TR): 56.5
CURB WEIGHT (CW): 3,240 lbs
WINDSHIELD ANGLE (WA): 21°
CHASSIS SPECS
GROUND CLEARANCE (GC): 8.2
APPROACH ANGLE (AA): 41°
BREAKOVER ANGLE (BA): 20°
DEPARTURE ANGLE (DA): 34°
SUSPENSION TYPE (SU): Leaf Spring
WHEEL SPECS
WHEEL NAME: 5-Star Wheel
WHEEL DIAMETER (WD): 15.0
WHEEL WIDTH (WW): 7.0
BOLT PATTERN (BP): 5 x 4.5
TIRE WIDTH (TW): 9.3
TIRE DIAMETER (TD): 28.8
SPARE LOCATION: Rear Spare
All specifications refer to original stock versions
All dimensions shown in inches
Drawn by Christopher James Botham
