JEEP
Ambulance
1953 - 1963
A.K.A. MD-A, G-758
CIVILIAN VERSION: CJ-6 Universal
ASSEMBLY: Toledo, OH, USA
UNITS PRODUCED: 4,150
M-170
The M-170 Ambulance Jeep is basically an M-38A1 with a 20-inch longer wheelbase. It is one of the rarest military jeeps, with a six-seat capacity and a spare tire on the passenger side interior.

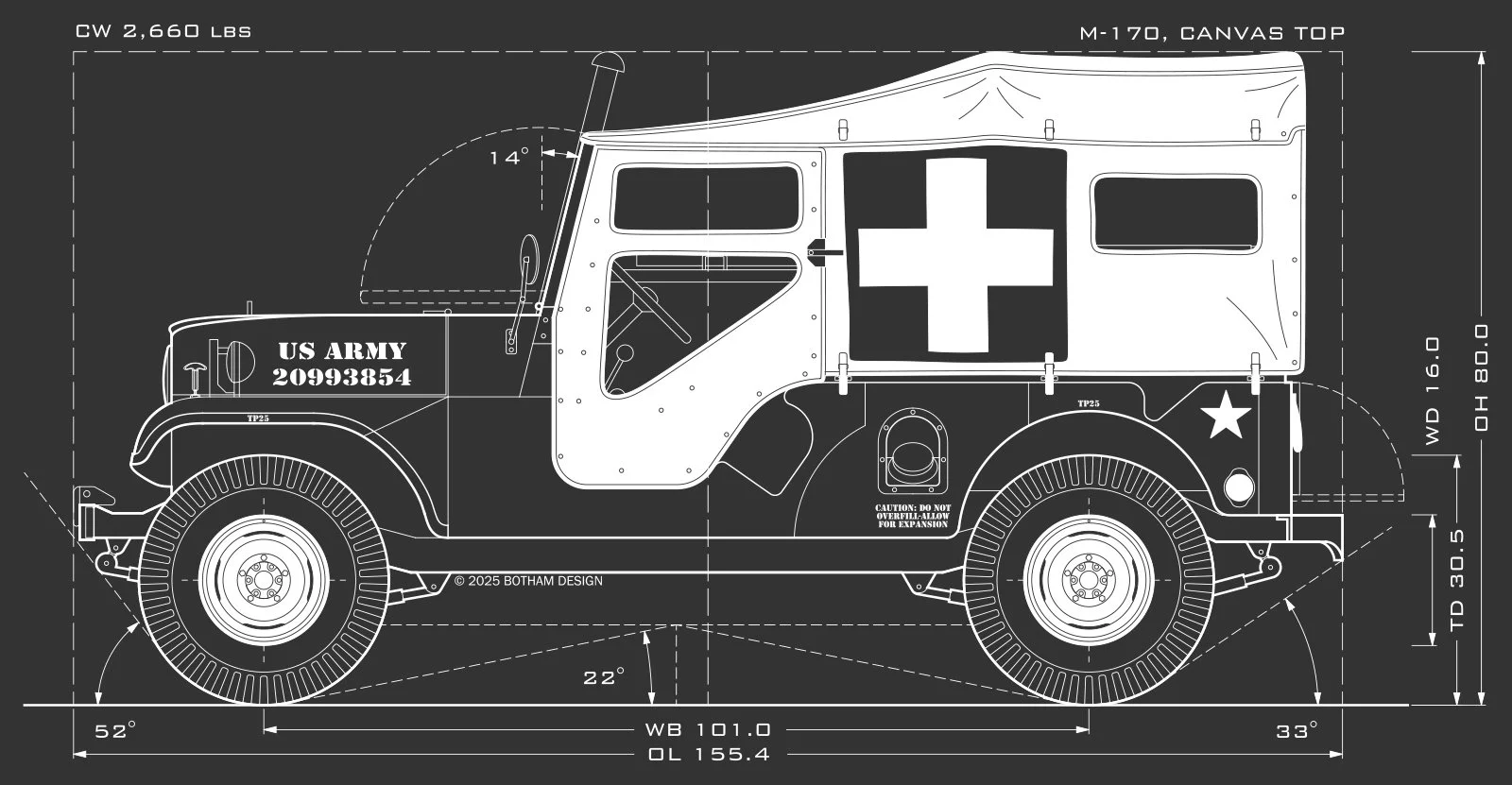

JEEP M-170 SPECS
MAIN SPECS
OVERALL LENGTH (OL): 155.4
OVERALL WIDTH (OW): 60.8
OVERALL HEIGHT (OH), TOP UP: 80
WHEELBASE (WB): 101.0
TRACK WIDTH (TR): 49.1
CURB WEIGHT (CW): 2,660 lbs
WINDSHIELD ANGLE (WA): 14°
CHASSIS SPECS
GROUND CLEARANCE (GC): 9.8
APPROACH ANGLE (AA): 52°
BREAKOVER ANGLE (BA): 22°
DEPARTURE ANGLE (DA): 33°
SUSPENSION TYPE (SU): Leaf Spring
WHEEL SPECS
WHEEL NAME: Combat Wheel
WHEEL DIAMETER (WD): 16.0
WHEEL WIDTH (WW): 4.5
BOLT PATTERN (BP): 5 x 5.5
TIRES: 7.50x16 NDT
TIRE WIDTH (TW): 7.7
TIRE DIAMETER (TD): 30.6
SPARE LOCATION: Interior Spare
All specifications refer to original stock versions
All dimensions shown in inches
Drawn by Christopher James Botham
