WILLYS
AGRIJEEP
1944 - 1945
A.K.A. The Farm Jeep
Military Version: Willys MB
ASSEMBLY: Toledo, OH, USA
UNITS PRODUCED: 50
CJ-2

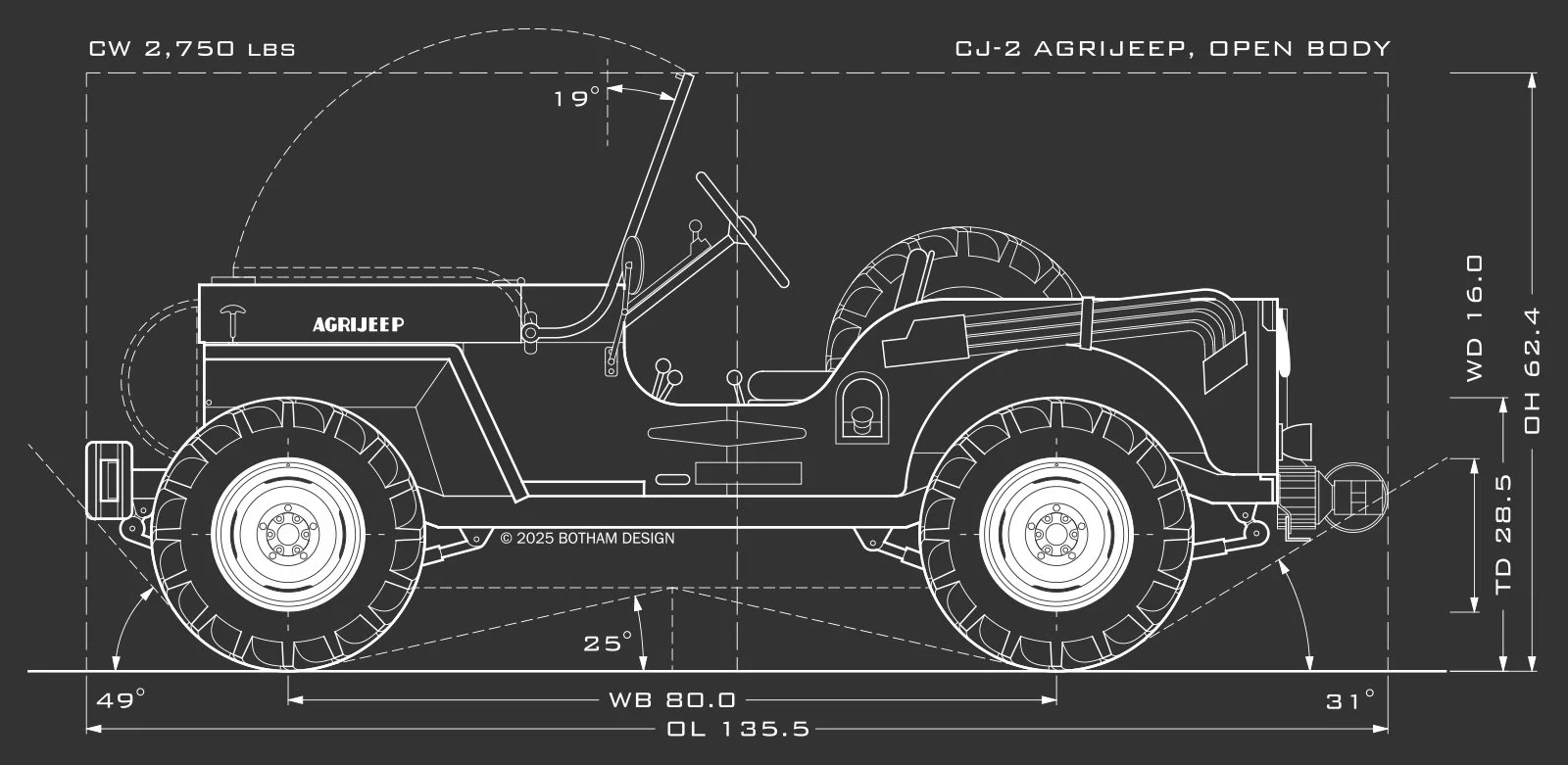

The Agrijeep was Willys first attempt at a civilian jeep. It was based on the Military MB and adapted for various farm uses. It featured tractor-style tires and a tailgate, with many other options available. Some of these options are shown here and include a set of counter-weights attached to the front bumper that would weigh the front end down while plowing, a screen filter in front of the grille, and a spindle mounted to the rear bumper.
CJ-2 AGRIJEEP SPECS
MAIN SPECS
OVERALL LENGTH (OL): 135.5
OVERALL WIDTH (OW): 59.5

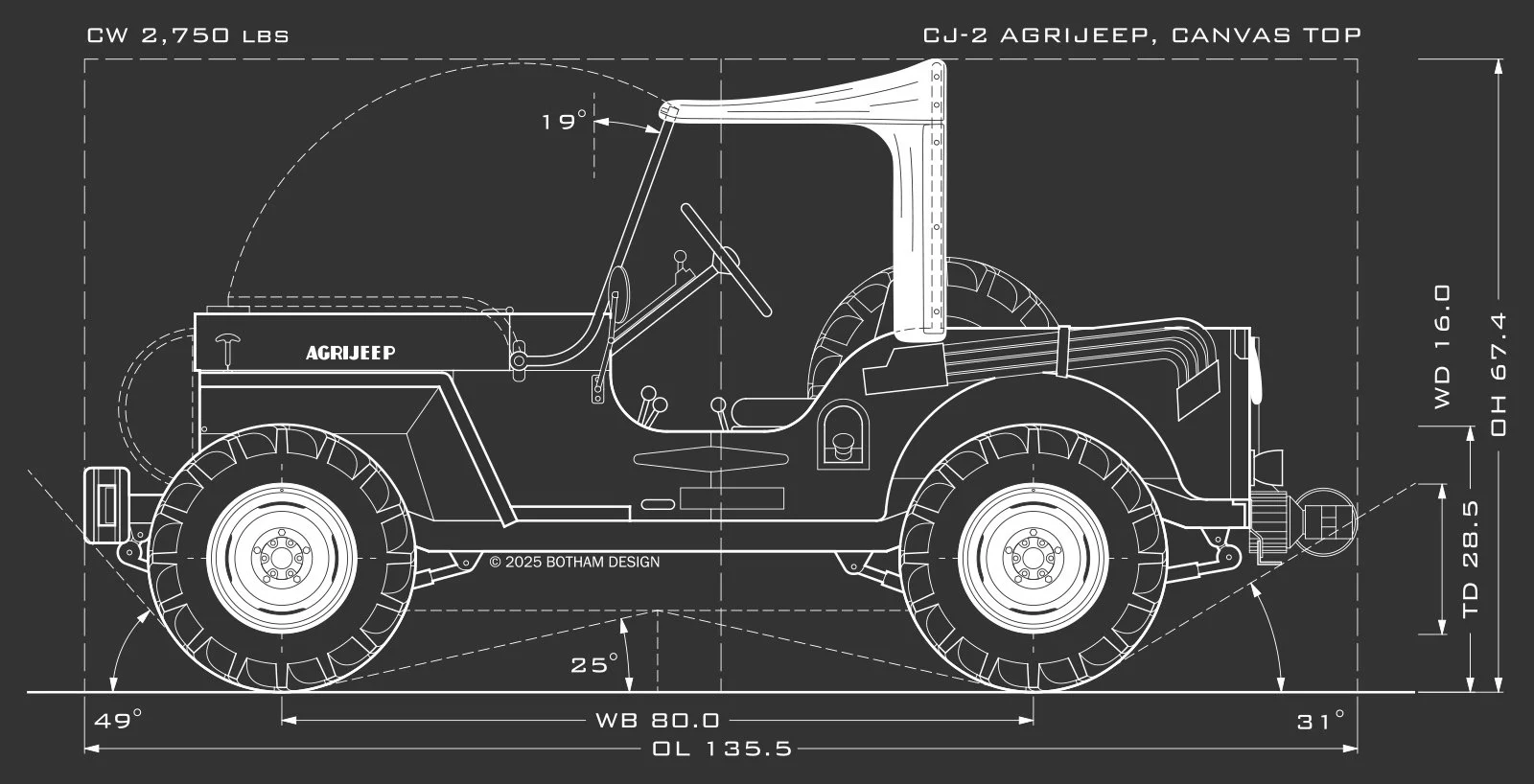

OVERALL HEIGHT (OH), TOP UP: 67.4

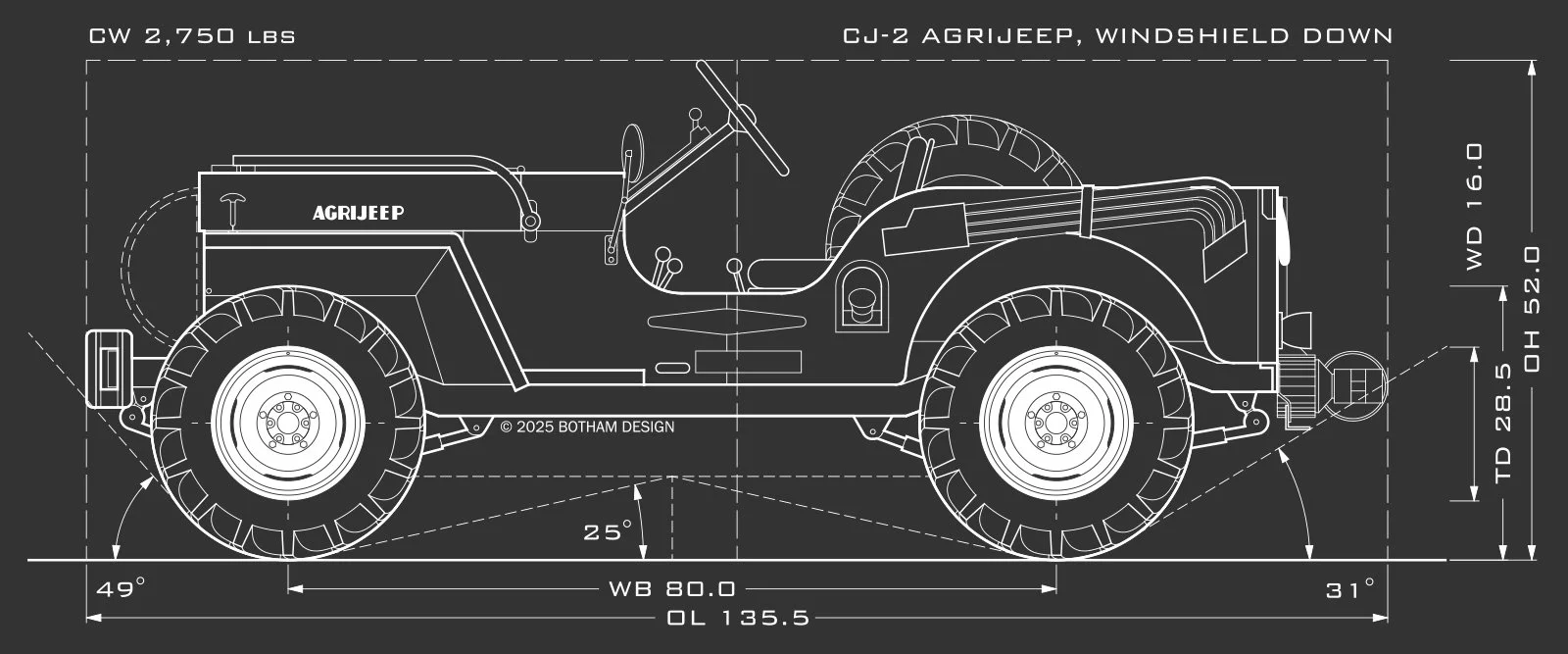

OVERALL HEIGHT (OH), FRAME: 62.4
OVERALL HEIGHT (OH), MIN: 52.0
WHEELBASE (WB): 80.0
TRACK WIDTH (TR): 49.0
CURB WEIGHT (CW): 2,750 lbs
WINDSHIELD ANGLE (WA): 19°
CHASSIS SPECS
GROUND CLEARANCE (GC): 8.8
APPROACH ANGLE (AA): 49°
BREAKOVER ANGLE (BA): 25°
DEPARTURE ANGLE (DA): 31°
SUSPENSION TYPE (SU): Leaf Spring
WHEEL SPECS
WHEEL NAME: Civilian Wheel
WHEEL DIAMETER (WD): 16.0
WHEEL WIDTH (WW): 4.5
BOLT PATTERN (BP): 5 x 5.5
TIRES: 6.00x16 Tractor Tread
TIRE WIDTH (TW): 7.5
TIRE DIAMETER (TD): 28.5
SPARE LOCATION: Side Spare
All specifications refer to original stock versions
All dimensions shown in inches
Drawn by Christopher James Botham
