JEEP
Scrambler
1981 - 1986
BASE MODEL: CJ-7
ASSEMBLY: Toledo, OH, USA
UNITS PRODUCED: 27,500
CJ-8
The CJ-8 Scrambler was a modified CJ-7 with a longer wheelbase, a half-cab and a pickup-truck bed. These jeeps got the nickname 'Scrambler' from a popular trim package that included orange and gold side graphics.
JEEP CJ-8 SPECS
MAIN SPECS
OVERALL LENGTH (OL): 177.2
OVERALL WIDTH (OW): 68.5
OVERALL HEIGHT (OH), TOP UP: 69.2
OVERALL HEIGHT (OH), FRAME: 69.2
WHEELBASE (WB): 103.4
TRACK WIDTH (TR): 55.2
CURB WEIGHT (CW): 2,700 lbs
WINDSHIELD ANGLE (WA): 19°
CHASSIS SPECS
GROUND CLEARANCE (GC): 8.3
APPROACH ANGLE (AA): 43°
BREAKOVER ANGLE (BA): 18°
DEPARTURE ANGLE (DA): 18°
SUSPENSION TYPE (SU): Leaf Spring
WHEEL SPECS
WHEEL NAME: 8-Spoke Wheel
A.K.A. Wagon Wheel
WHEEL DIAMETER (WD): 15.0
WHEEL WIDTH (WW): 7.0
BOLT PATTERN (BP): 5 x 5.5
TIRE WIDTH (TW): 9.3
TIRE DIAMETER (TD): 28.9
SPARE LOCATION: Rear Spare
All specifications refer to original stock versions
All dimensions shown in inches

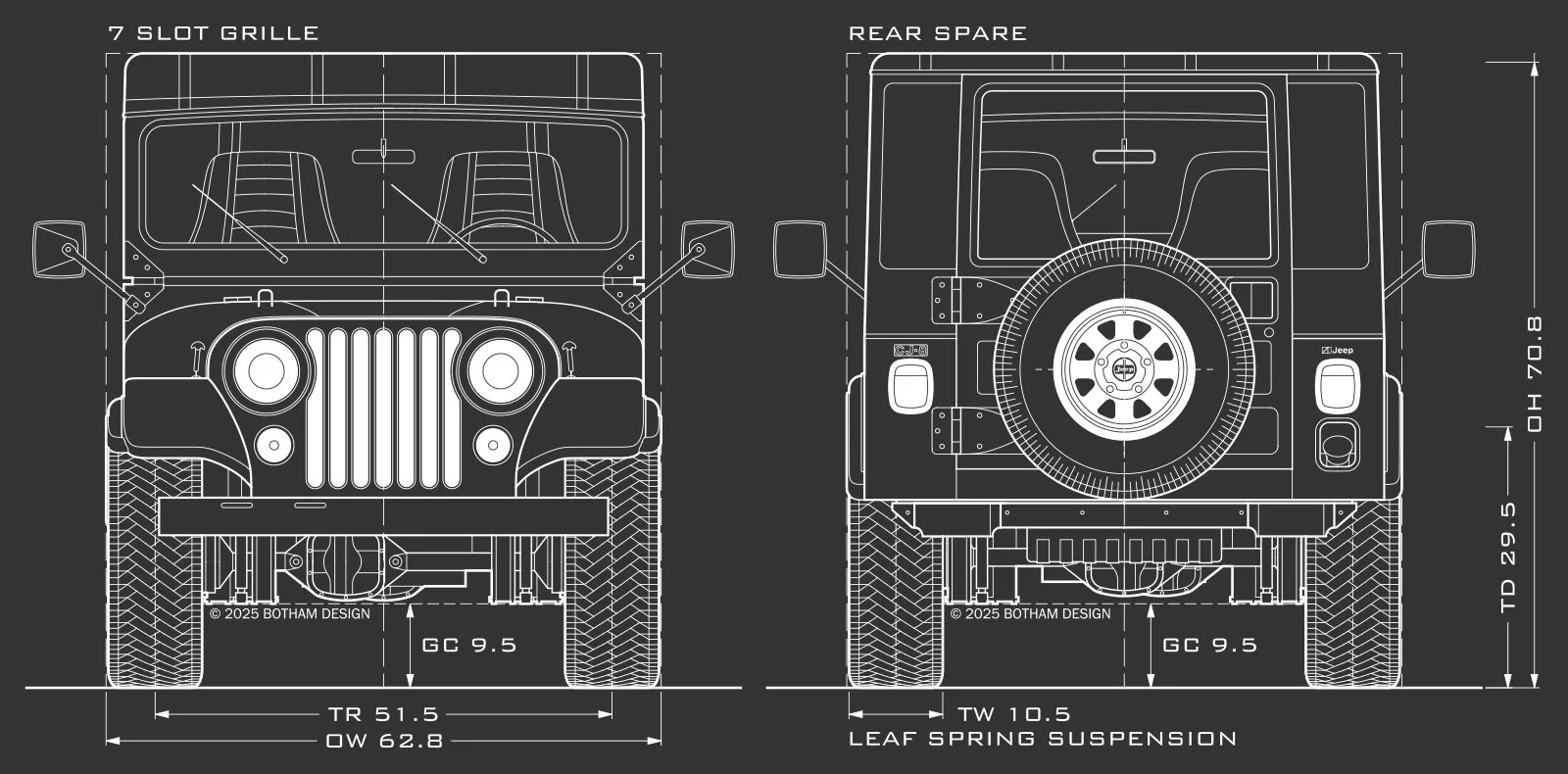

Drawn by Christopher James Botham
