WILLYS
1949 - 1953
Military Version: Willys M-38
ASSEMBLY: Toledo, OH, USA
UNITS PRODUCED: 131,500
CJ-3A
The CJ-3A was an updated version of the CJ-2A with a single-piece windshield and front vent. The CJ-3A was intended for use on the farm, and was originally offered as a farm jeep version and a tractor version.

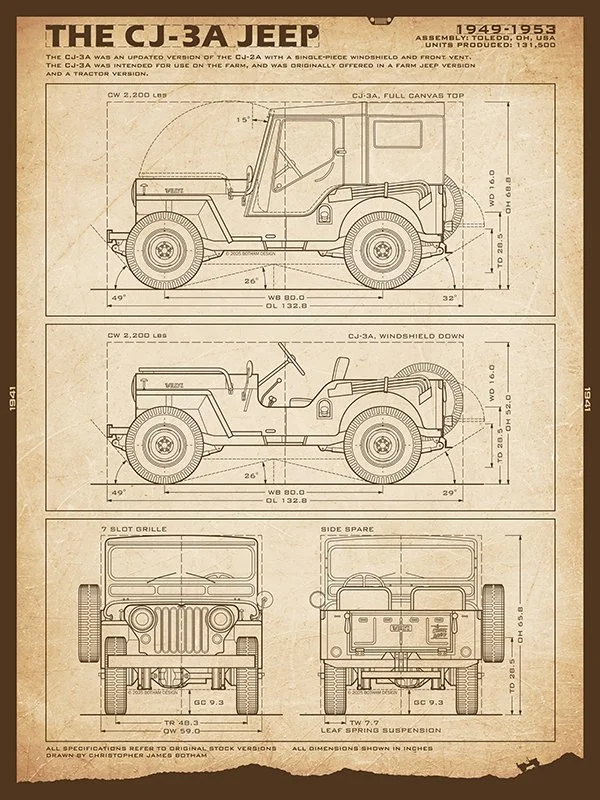

CJ-3A SPECS
MAIN SPECS

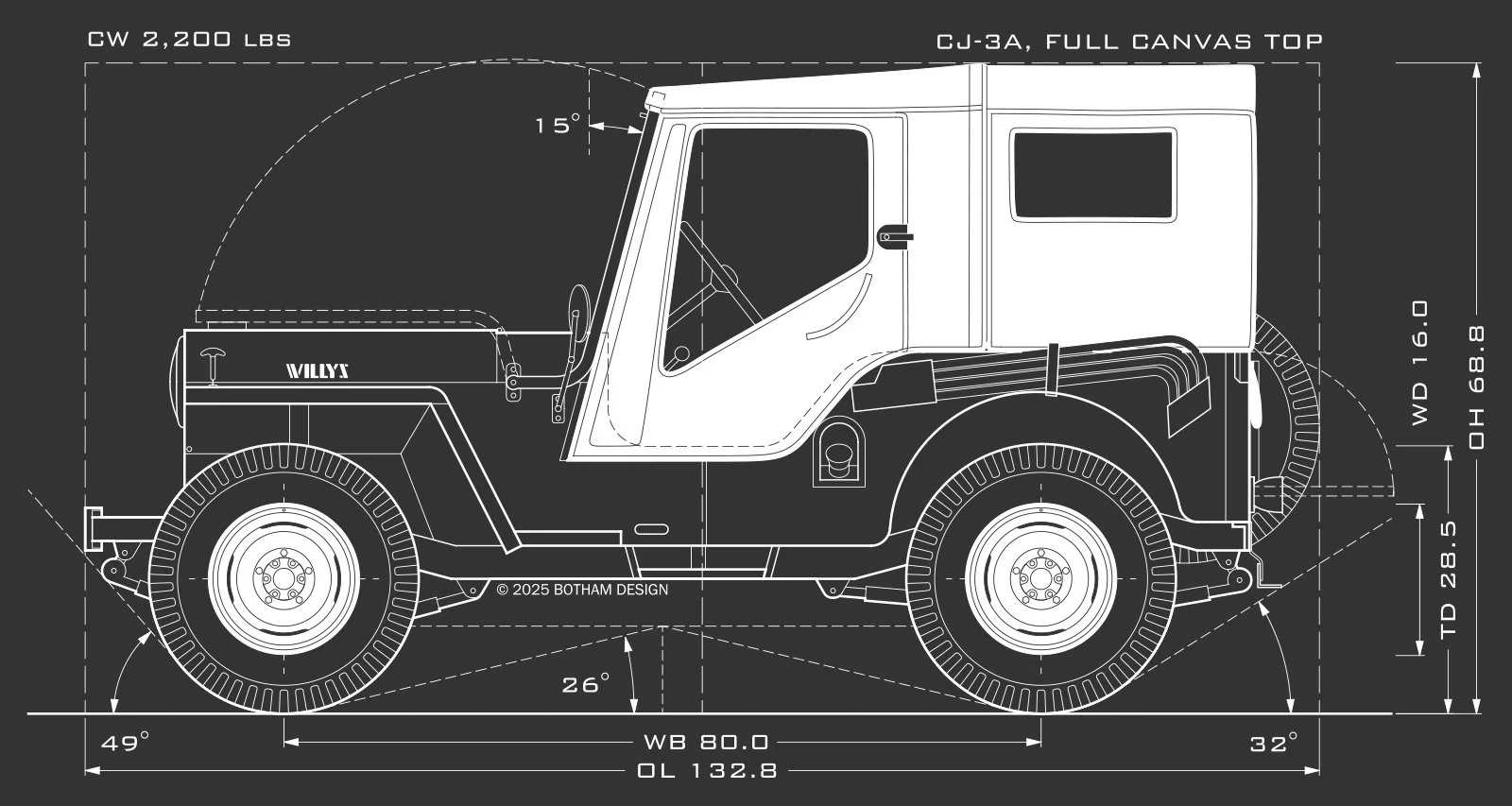

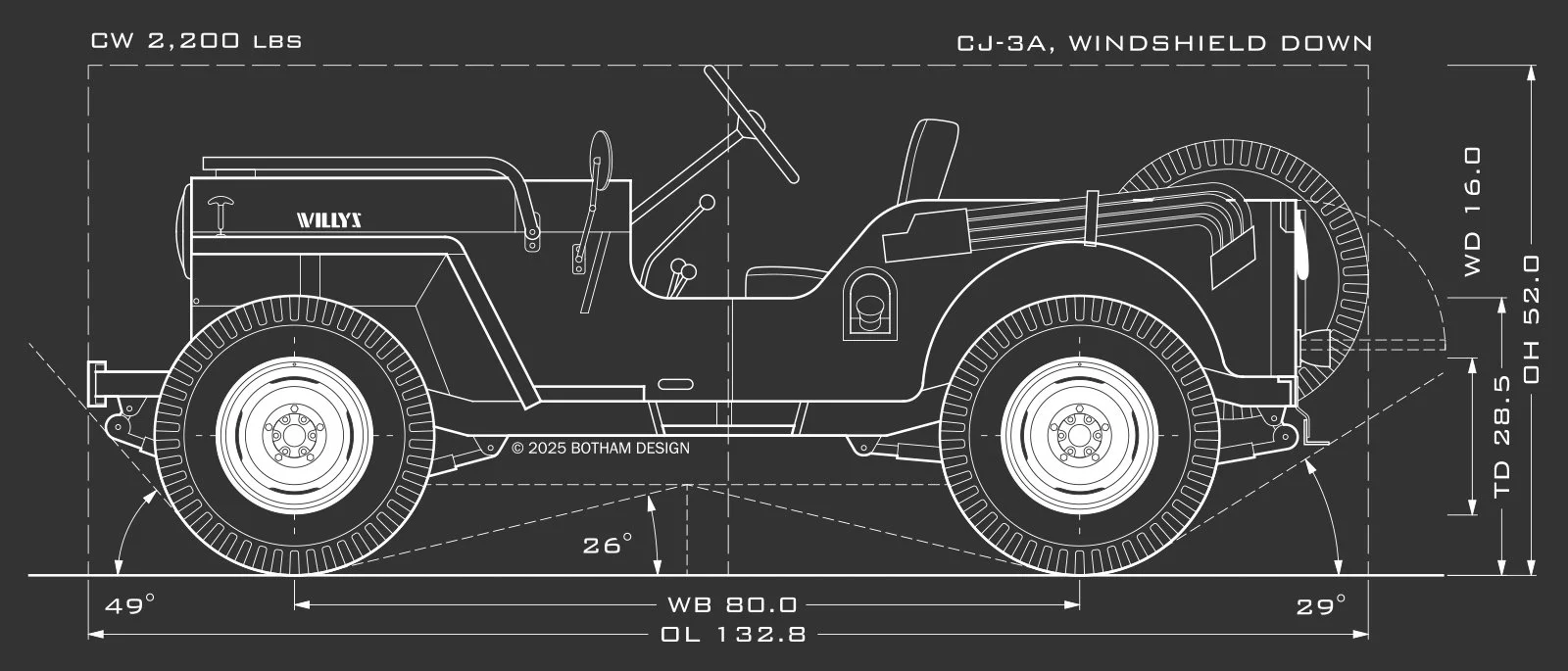

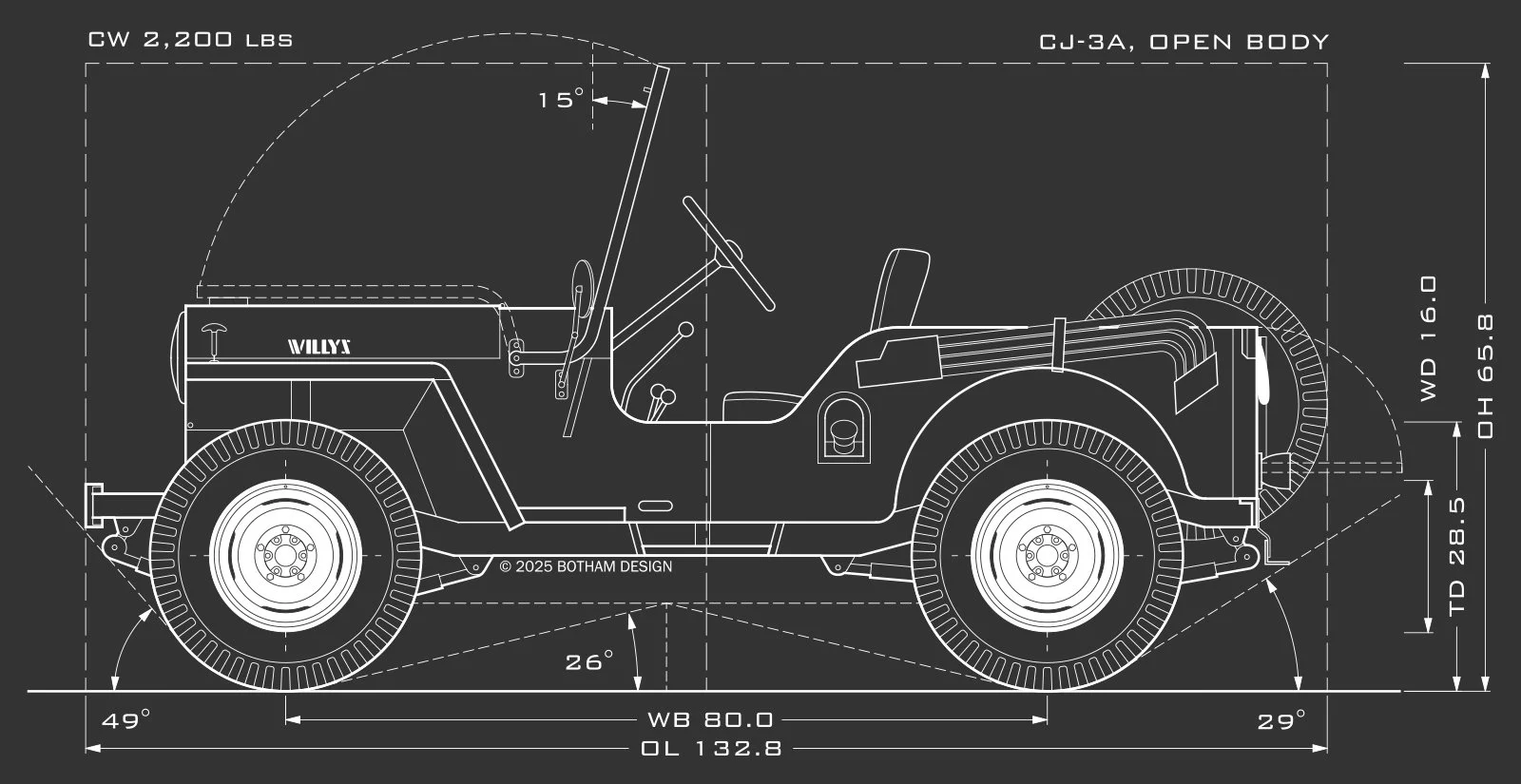

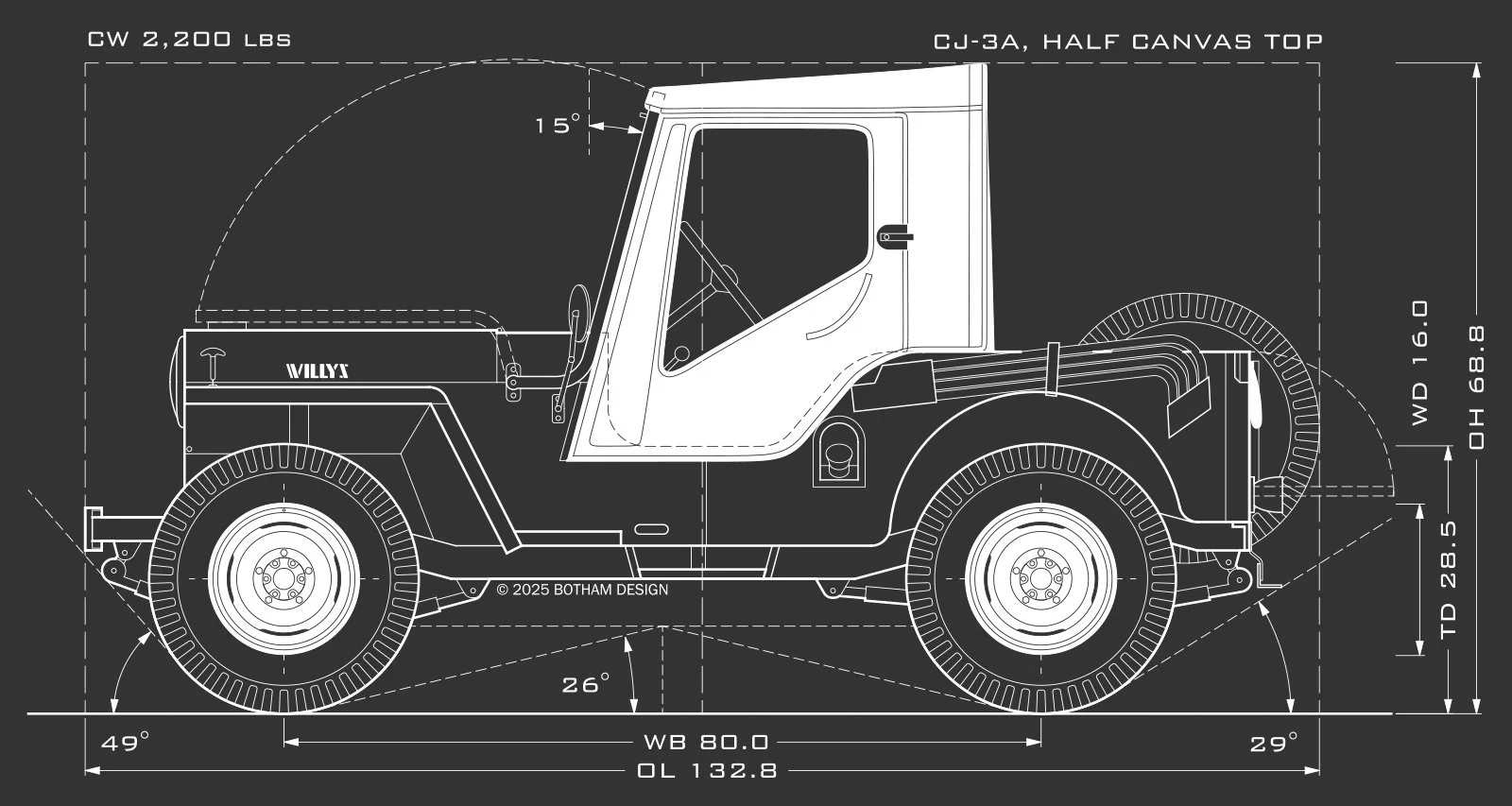

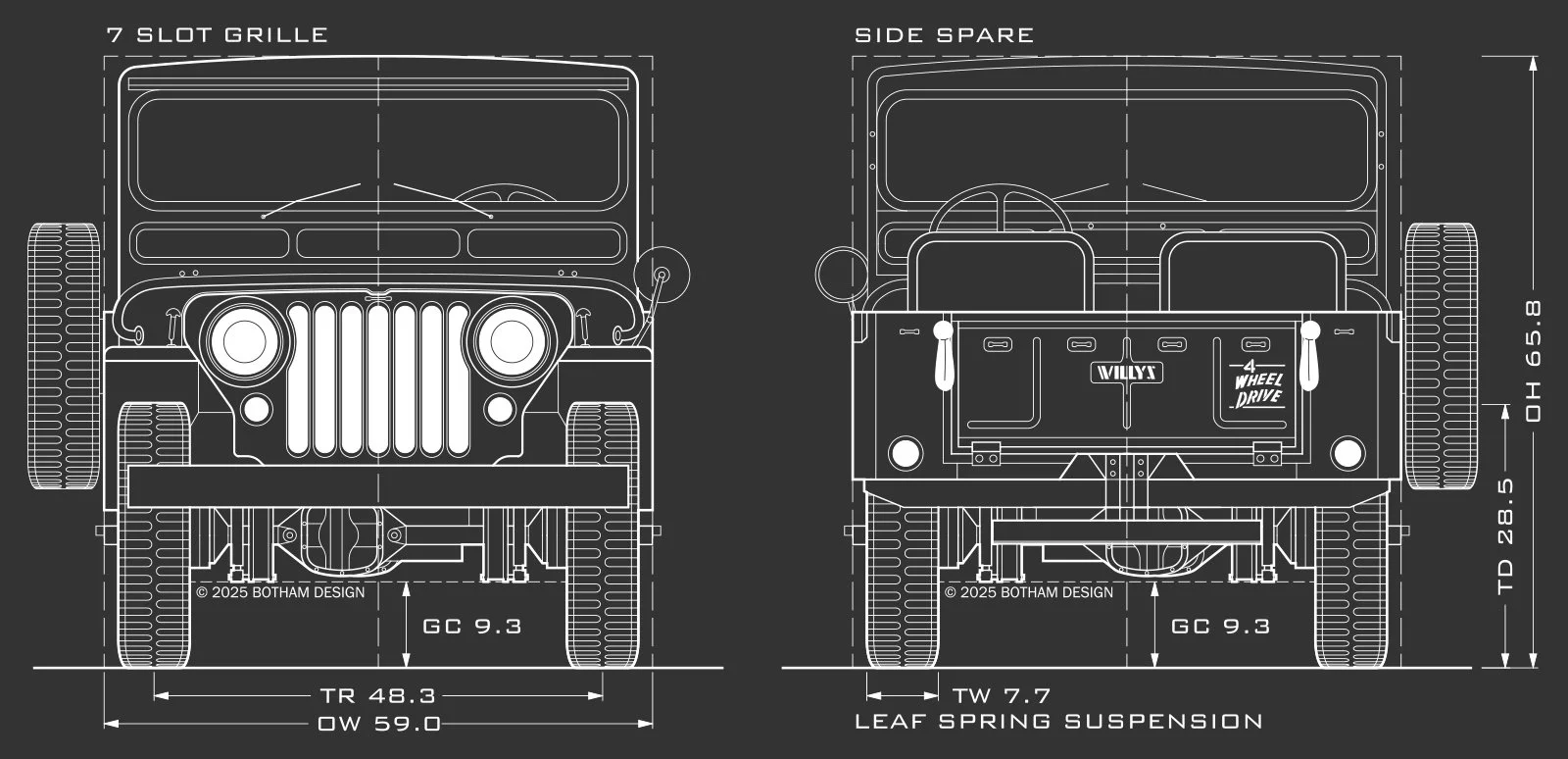

OVERALL LENGTH (OL): 132.8
OVERALL WIDTH (OW): 59.0
OVERALL HEIGHT (OH), TOP UP: 69.5
OVERALL HEIGHT (OH), FRAME: 66.8
OVERALL HEIGHT (OH), MIN: 52.0
WHEELBASE (WB): 80.0
TRACK WIDTH (TR): 48.3
CURB WEIGHT (CW): 2,200 lbs
WINDSHIELD ANGLE (WA): 15°
CHASSIS SPECS
GROUND CLEARANCE (GC): 9.3
APPROACH ANGLE (AA): 46°
BREAKOVER ANGLE (BA): 26°
DEPARTURE ANGLE (DA): 29°
SUSPENSION TYPE (SU): Leaf Spring
WHEEL SPECS
WHEEL NAME: Civilian Wheel
WHEEL DIAMETER (WD): 16.0
WHEEL WIDTH (WW): 4.5
BOLT PATTERN (BP): 5 x 5.5
TIRES: 6.50x16 Non-Directional Tread
TIRE WIDTH (TW): 7.7
TIRE DIAMETER (TD): 28.5
SPARE LOCATION: Side Spare
All specifications refer to original stock versions
All dimensions shown in inches
Drawn by Christopher James Botham
