JEEP
Universal
1955 - 1981
MILITARY VERSION: M-170 Ambulance
ASSEMBLY: Toledo, OH, USA
UNITS PRODUCED: 50,100
CJ-6
The CJ-6 is the civilian version of the M-170 Ambulance jeep. It shares the same design as the CJ-5 Universal, but with a 20-inch longer wheelbase and a second row of seats. It wasn't very popular in the US, so most CJ-6 models were sold overseas.
JEEP CJ-6 SPECS
MAIN SPECS

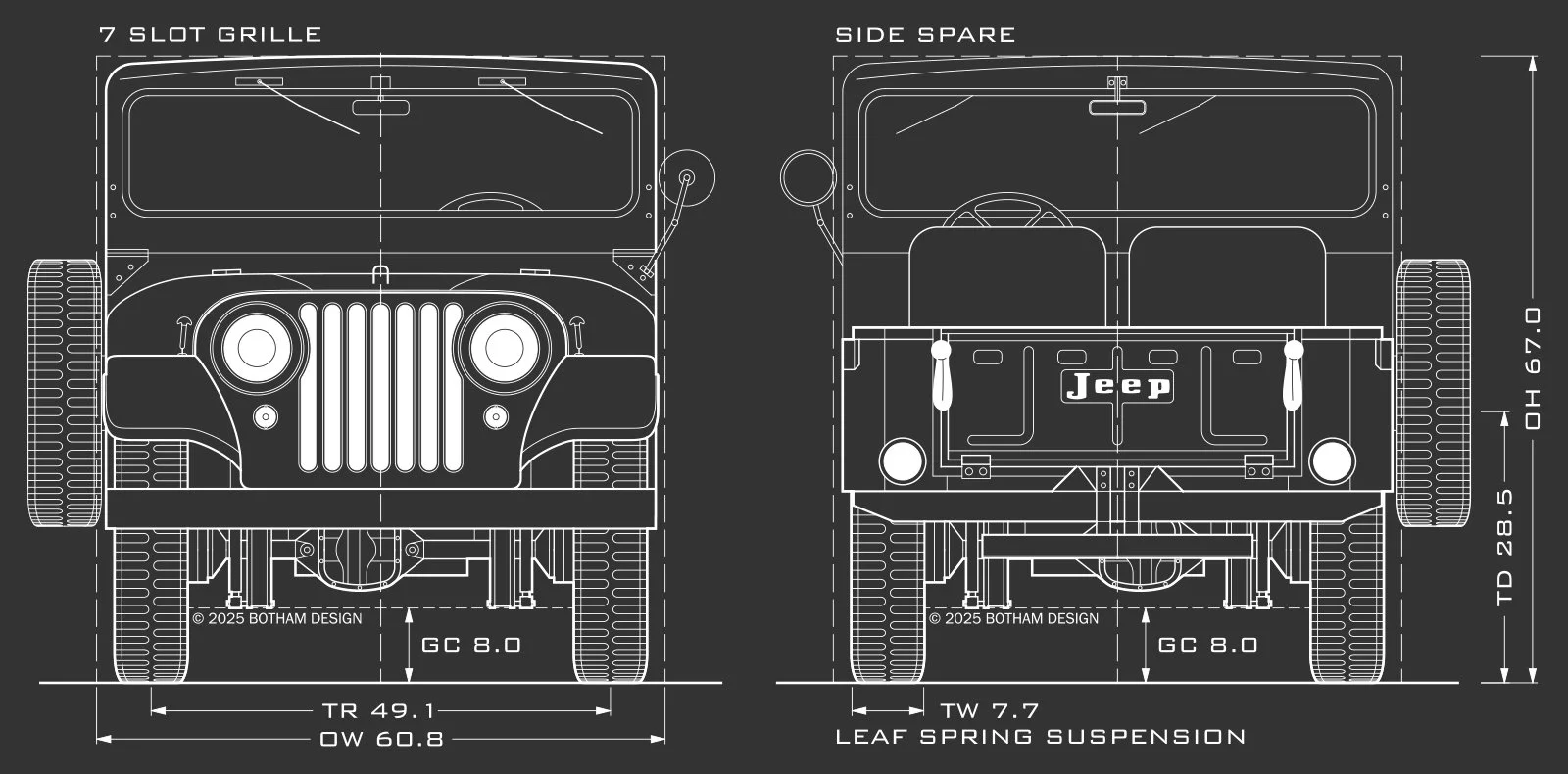

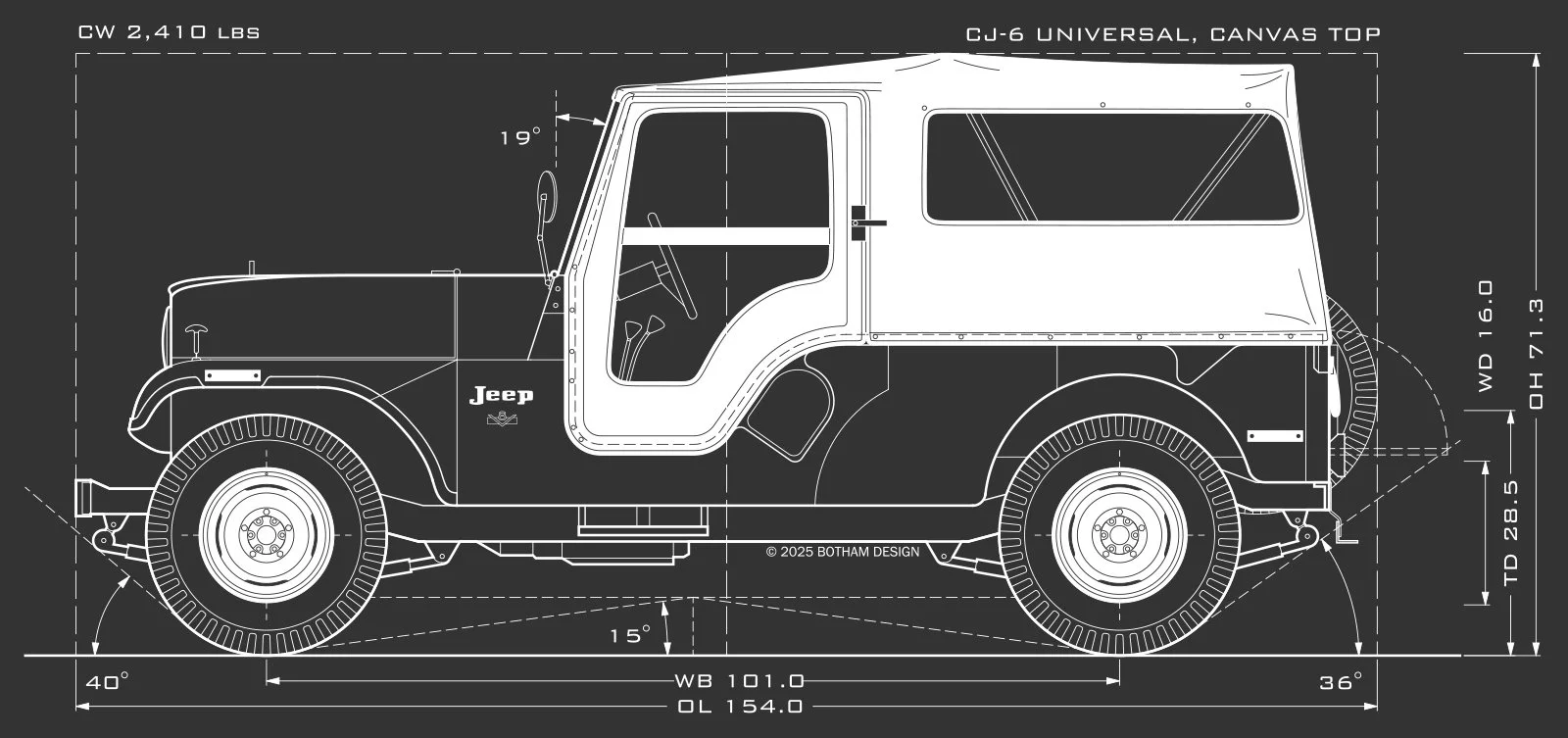

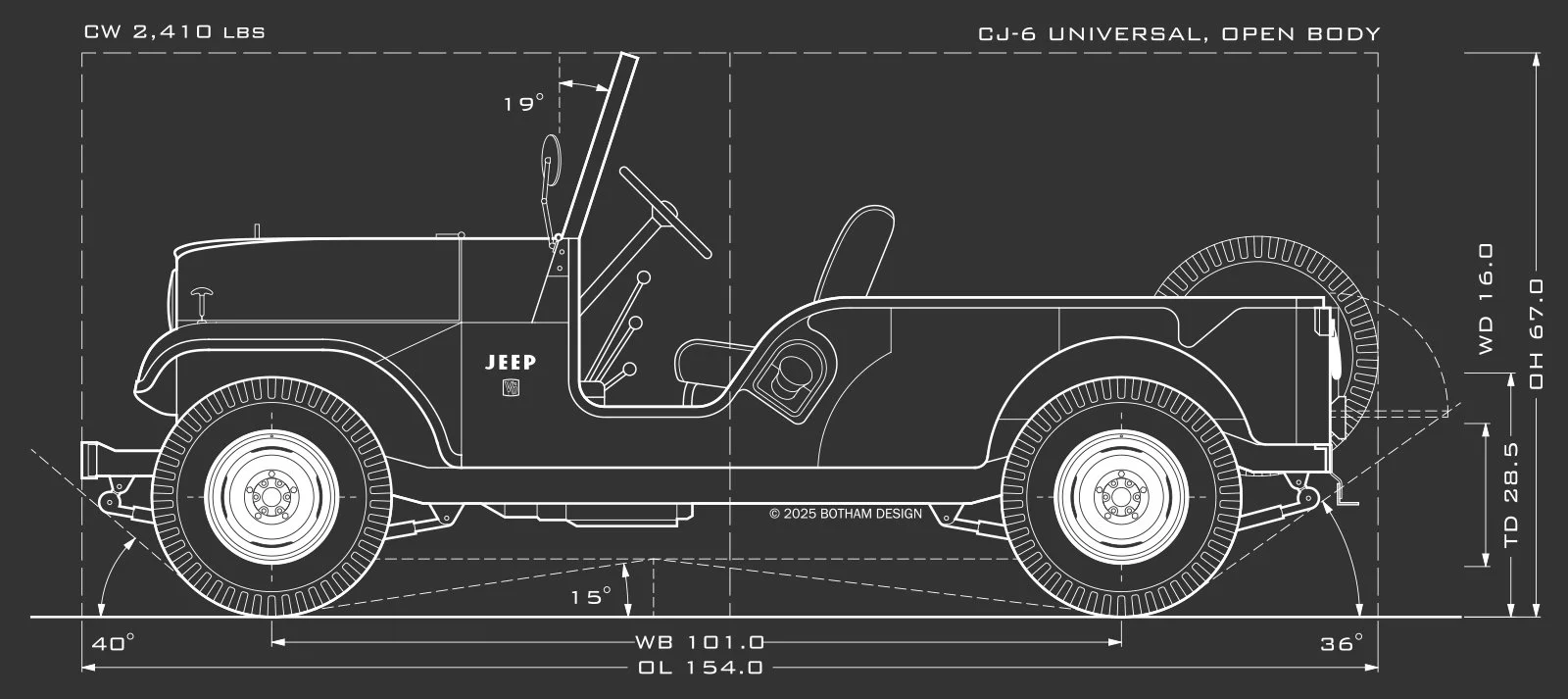

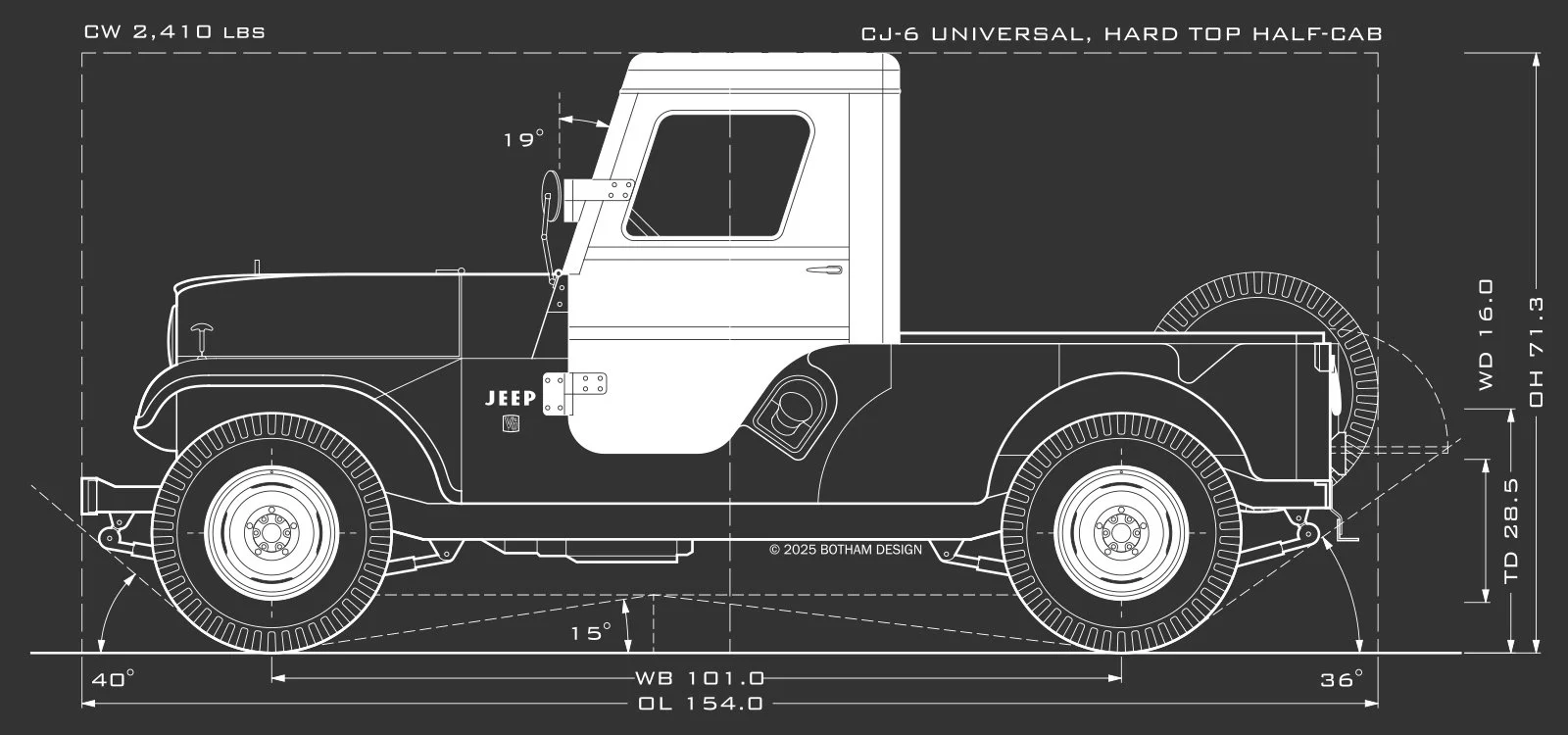

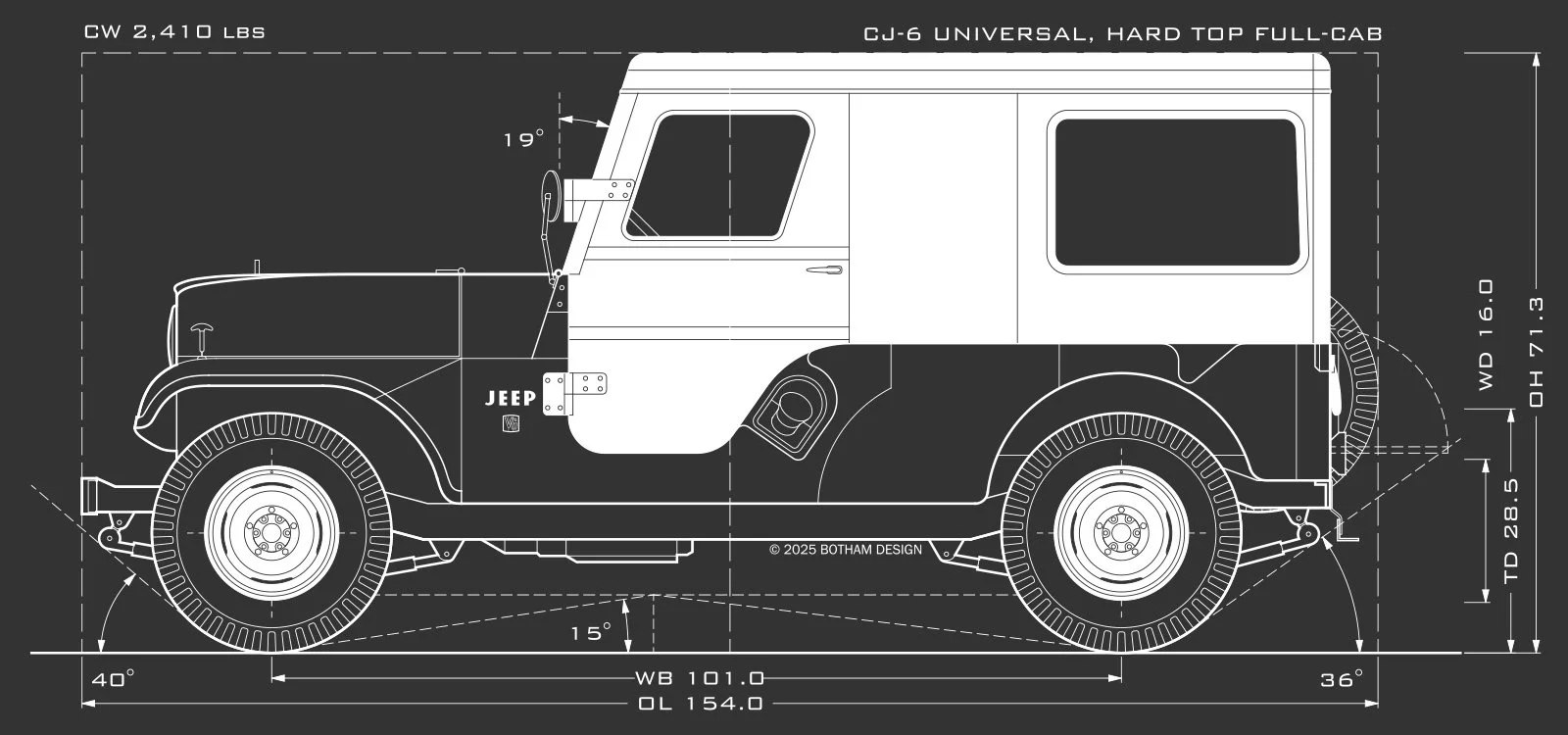

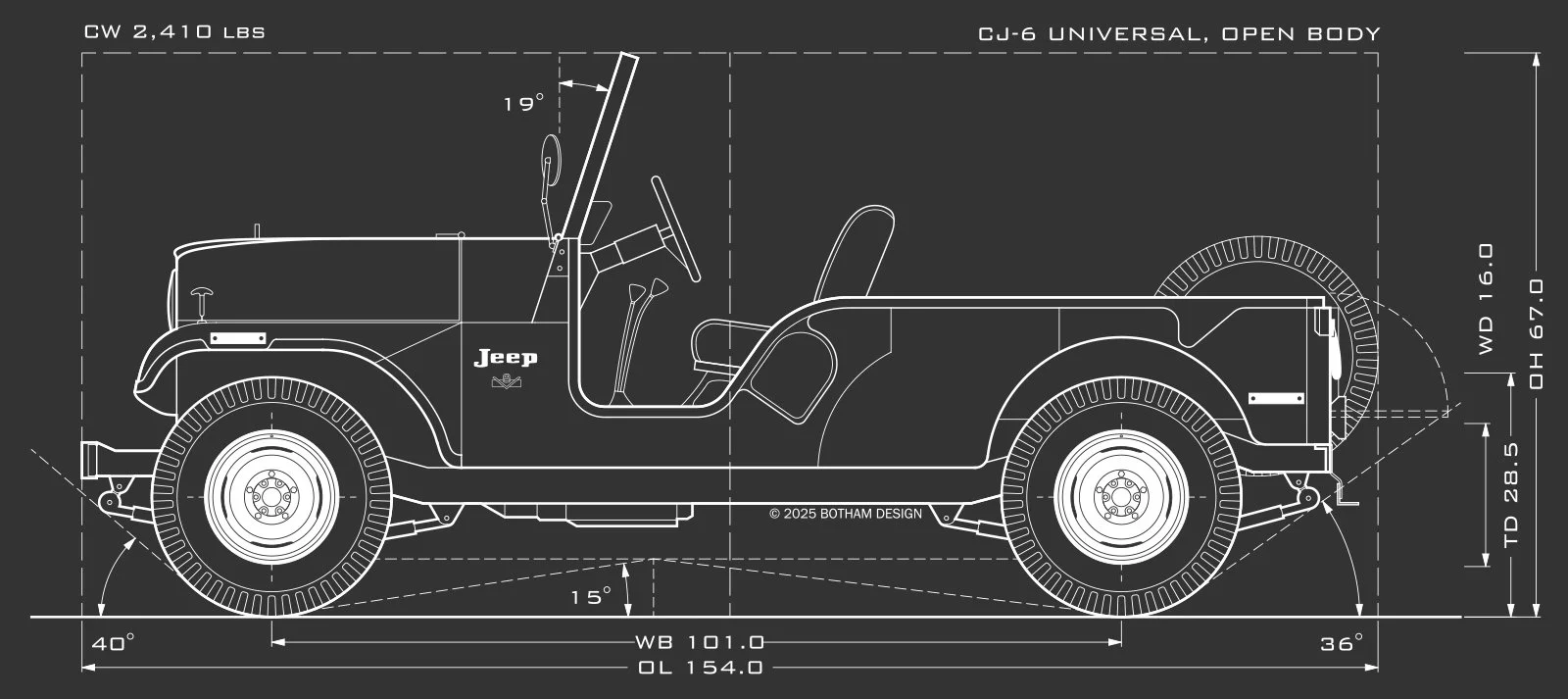

OVERALL LENGTH (OL): 154.0
OVERALL WIDTH (OW): 60.8
OVERALL HEIGHT (OH), TOP UP: 70.0
OVERALL HEIGHT (OH), FRAME: 67.0
WHEELBASE (WB): 101.0
TRACK WIDTH (TR): 49.1
CURB WEIGHT (CW): 2,410 lbs
WINDSHIELD ANGLE (WA): 19°
CHASSIS SPECS
GROUND CLEARANCE (GC): 8.0
APPROACH ANGLE (AA): 40°
BREAKOVER ANGLE (BA): 15°
DEPARTURE ANGLE (DA): 36°
SUSPENSION TYPE (SU): Leaf Spring
WHEEL SPECS
WHEEL NAME: Civilian Wheel
WHEEL DIAMETER (WD): 16.0
WHEEL WIDTH (WW): 4.5
BOLT PATTERN (BP): 5 x 5.5
TIRE WIDTH (TW): 6.5
TIRE DIAMETER (TD): 28.5
SPARE LOCATION: Side Spare
All specifications refer to original stock versions
All dimensions shown in inches
Drawn by Christopher James Botham
