JEEP
1976 - 1986
ASSEMBLY: Toledo, OH, USA
UNITS PRODUCED: 379,000
CJ-7
The CJ-7 was similar to the CJ-5 Renegade, but with a 10-inch longer wheelbase and partially squared-off door cutouts to accommodate hinged doors. Later editions of the CJ-7 included a factory dash plaque that read "Last of a great breed, this collector’s edition CJ ends an era that began with the legendary Jeep of World War II".

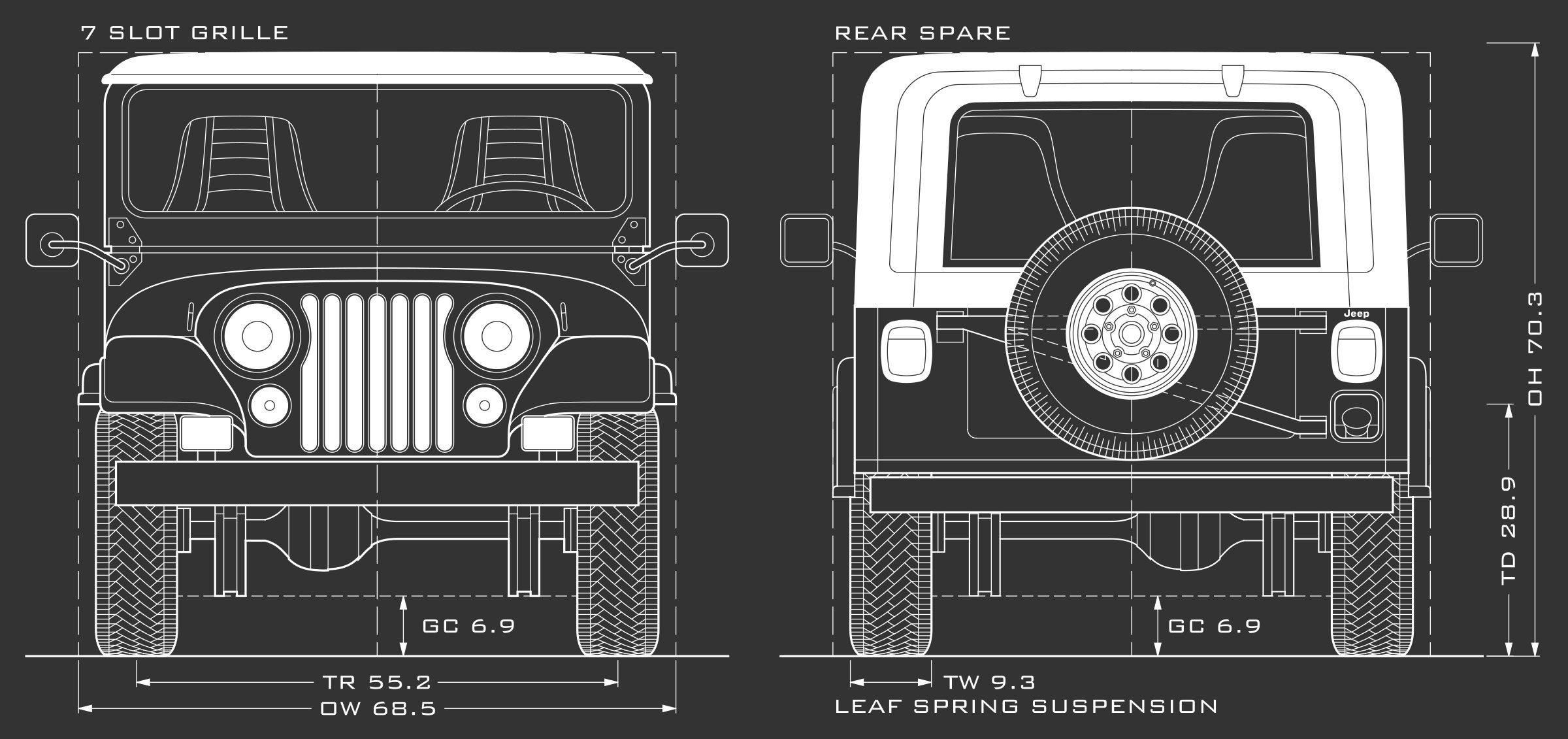

JEEP CJ-7 SPECS
MAIN SPECS
OVERALL LENGTH (OL): 148.0
OVERALL WIDTH (OW): 68.5
OVERALL HEIGHT (OH), TOP UP: 70.3
OVERALL HEIGHT (OH), FRAME: 67.7
WHEELBASE (WB): 93.3
TRACK WIDTH (TR): 55.2
CURB WEIGHT (CW): 2,710 lbs
WINDSHIELD ANGLE (WA): 19°
CHASSIS SPECS
GROUND CLEARANCE (GC): 6.9
APPROACH ANGLE (AA): 43°
BREAKOVER ANGLE (BA): 17°
DEPARTURE ANGLE (DA): 32°
SUSPENSION TYPE (SU): Leaf Spring
WHEEL SPECS
WHEEL NAME: 8-Hole Wheel
WHEEL DIAMETER (WD): 15.0
WHEEL WIDTH (WW): 7.0
BOLT PATTERN (BP): 5 x 5.5
TIRE WIDTH (TW): 9.3
TIRE DIAMETER (TD): 28.9
SPARE LOCATION: Rear Spare
All specifications refer to original stock versions
All dimensions shown in inches
Drawn by Christopher James Botham
