JEEP
Wrangler
2007 - 2018
ASSEMBLY: Toledo, OH, USA
UNITS PRODUCED: 540,000
JK
The JK was the third-generation wrangler model, which was a complete re-design from previous models. The major distinction of the JK was the introduction of a 4-door model, dubbed the 'Unlimited'. These models (JKU for short), would eventually take over the market due to their much wider appeal over the 2-door models.

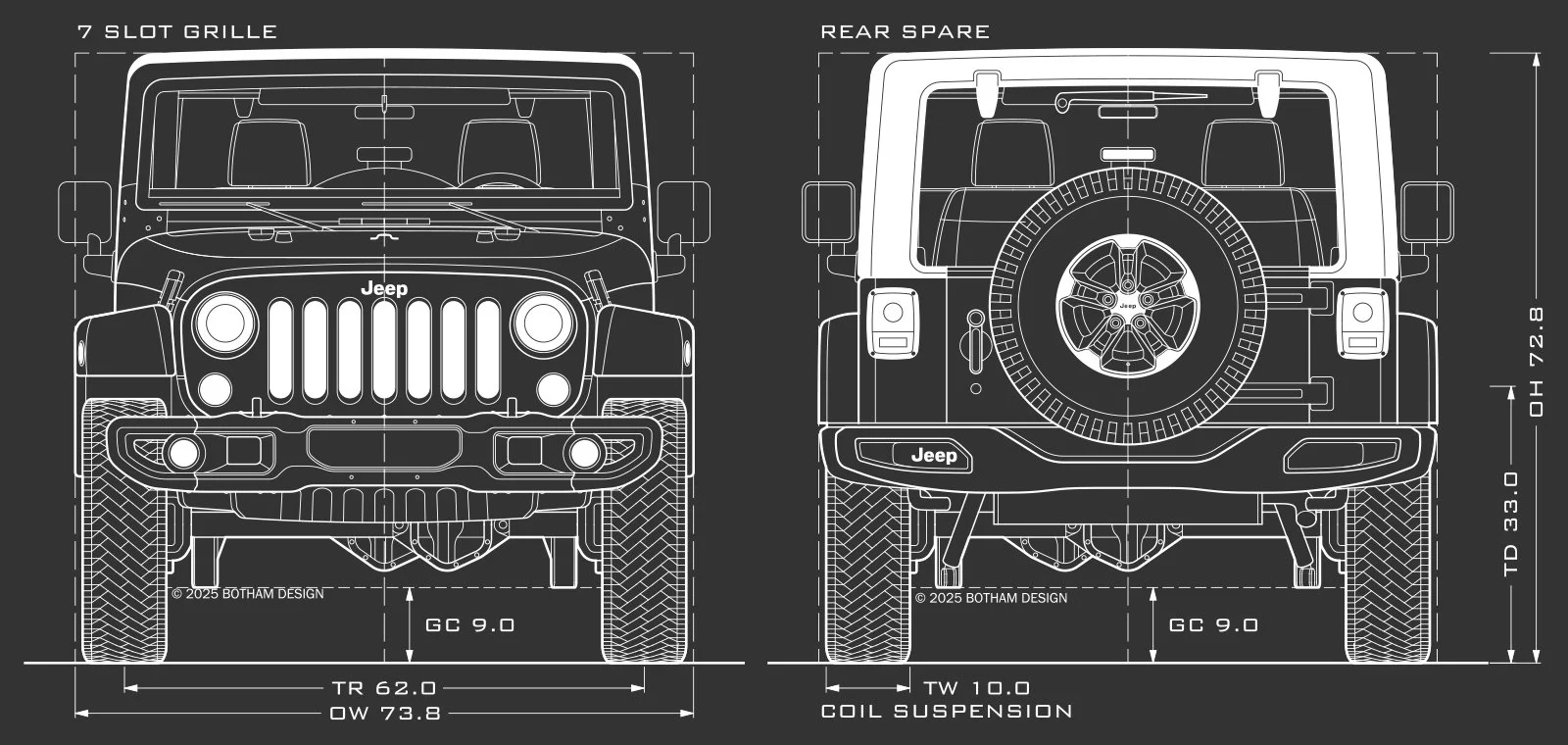

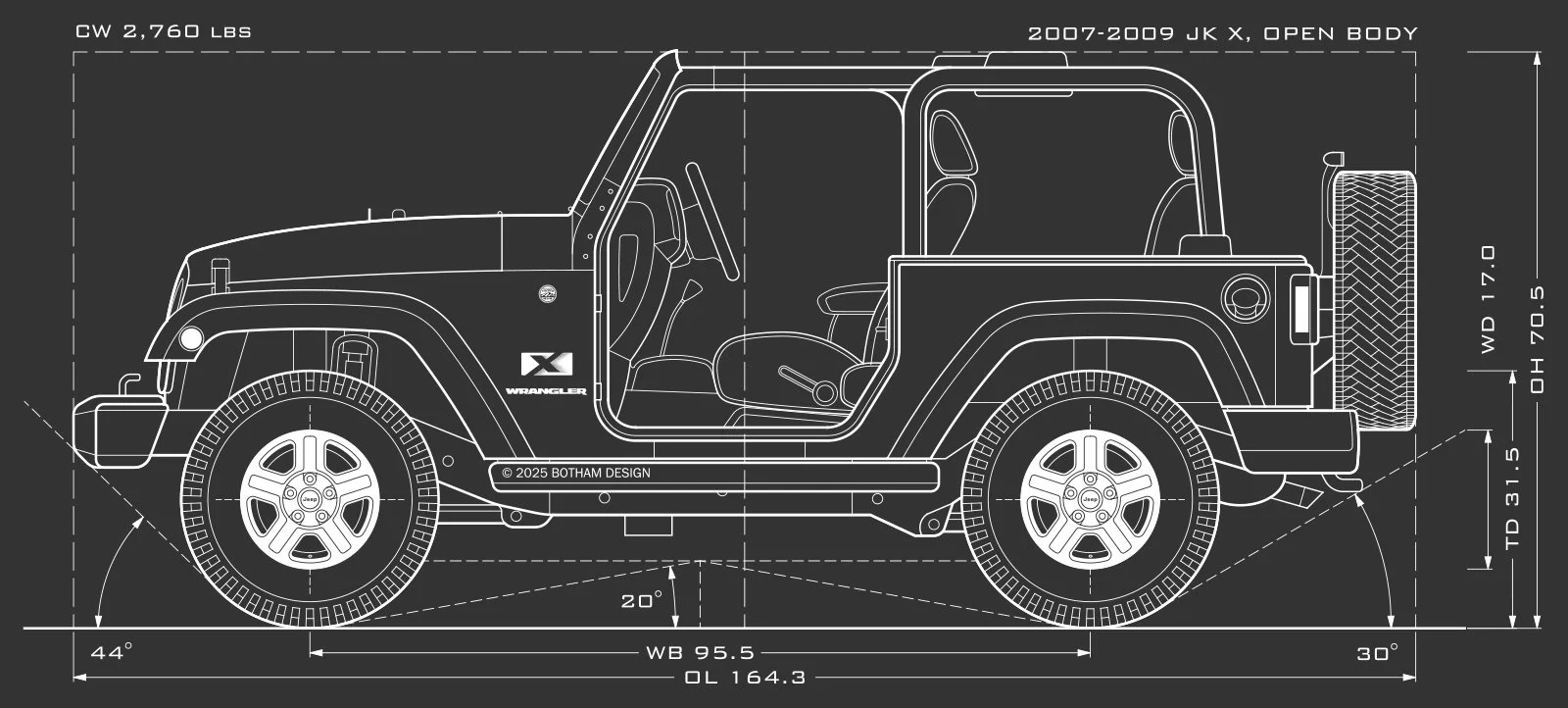

JEEP JK SPECS
MAIN SPECS
OVERALL LENGTH (OL): 164.3
OVERALL WIDTH (OW): 73.7
OVERALL HEIGHT (OH), HARD TOP: 72.3
OVERALL HEIGHT (OH), SOFT TOP: 72.3
OVERALL HEIGHT (OH), FRAME: 70.8
WHEELBASE (WB): 95.4
TRACK WIDTH (TR): 61.9
CURB WEIGHT (CW): 4,100 lbs
WINDSHIELD ANGLE (WA): 30°
CHASSIS SPECS
GROUND CLEARANCE (GC): 10.1
APPROACH ANGLE (AA): 43°
BREAKOVER ANGLE (BA): 24°
DEPARTURE ANGLE (DA): 40°
SUSPENSION TYPE (SU): Coil Spring
WHEEL SPECS
WHEEL NAME: Moab Wheel
WHEEL DIAMETER (WD): 17.0
WHEEL WIDTH (WW): 8.0
BOLT PATTERN (BP): 5 x 5
TIRE WIDTH (TW): 10.0
TIRE DIAMETER (TD): 32.1
SPARE LOCATION: Rear Spare
All specifications refer to original stock versions
All dimensions shown in inches
Drawn by Christopher James Botham
