JEEP
Wrangler
1996 - 2006
A.K.A. The Jeep
ASSEMBLY: Brampton, ON, Canada
Toledo, OH, USA
UNITS PRODUCED: 952,500
TJ
The TJ was the second-generation Wrangler model, which re-introduced the iconic circular headlights that were missing from the YJ Wrangler. The TJ was the first jeep to use coil-spring suspension, instead of the leaf-spring suspension used previously. This gave the TJ a smoother ride and better handling.

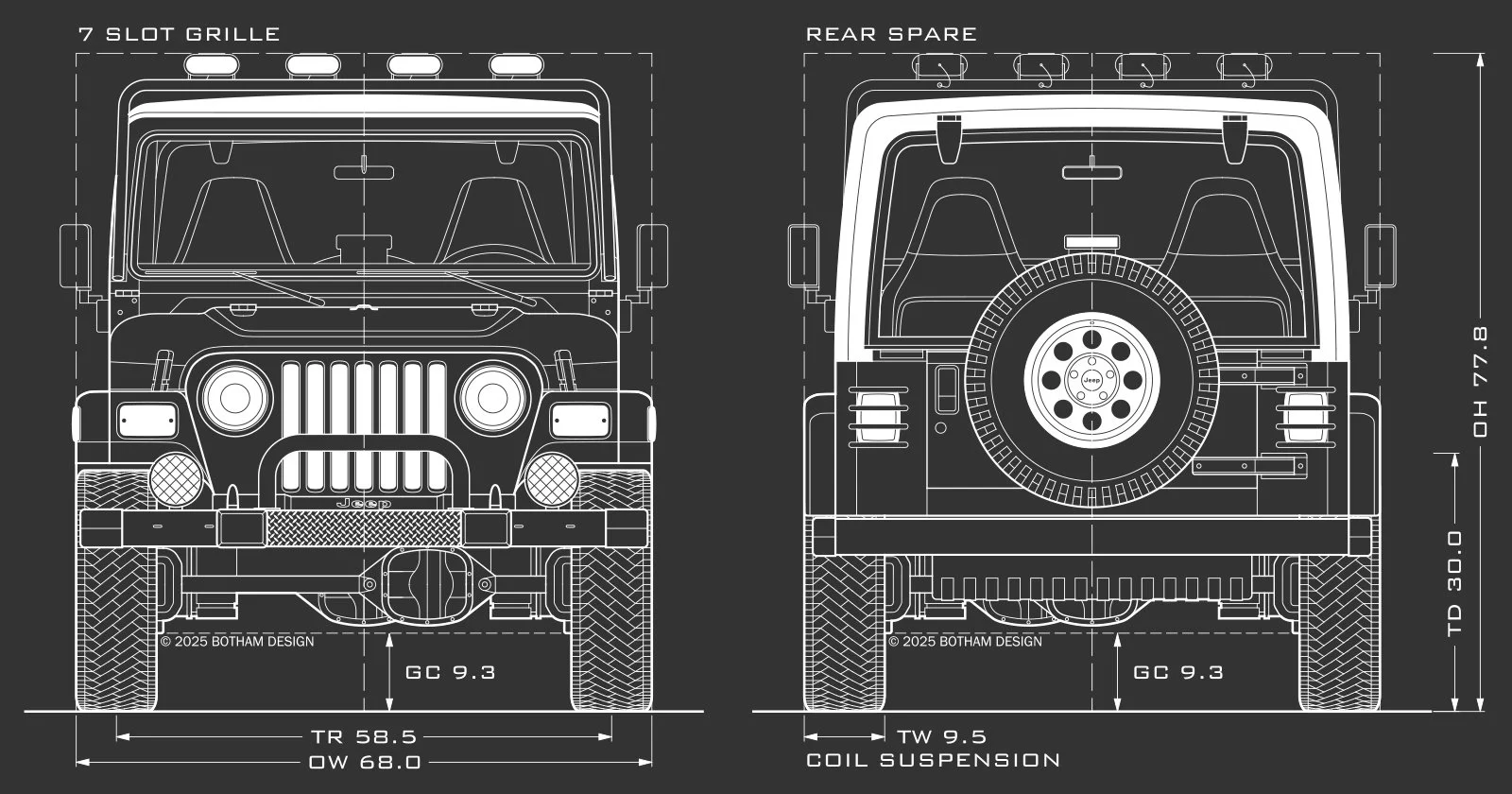

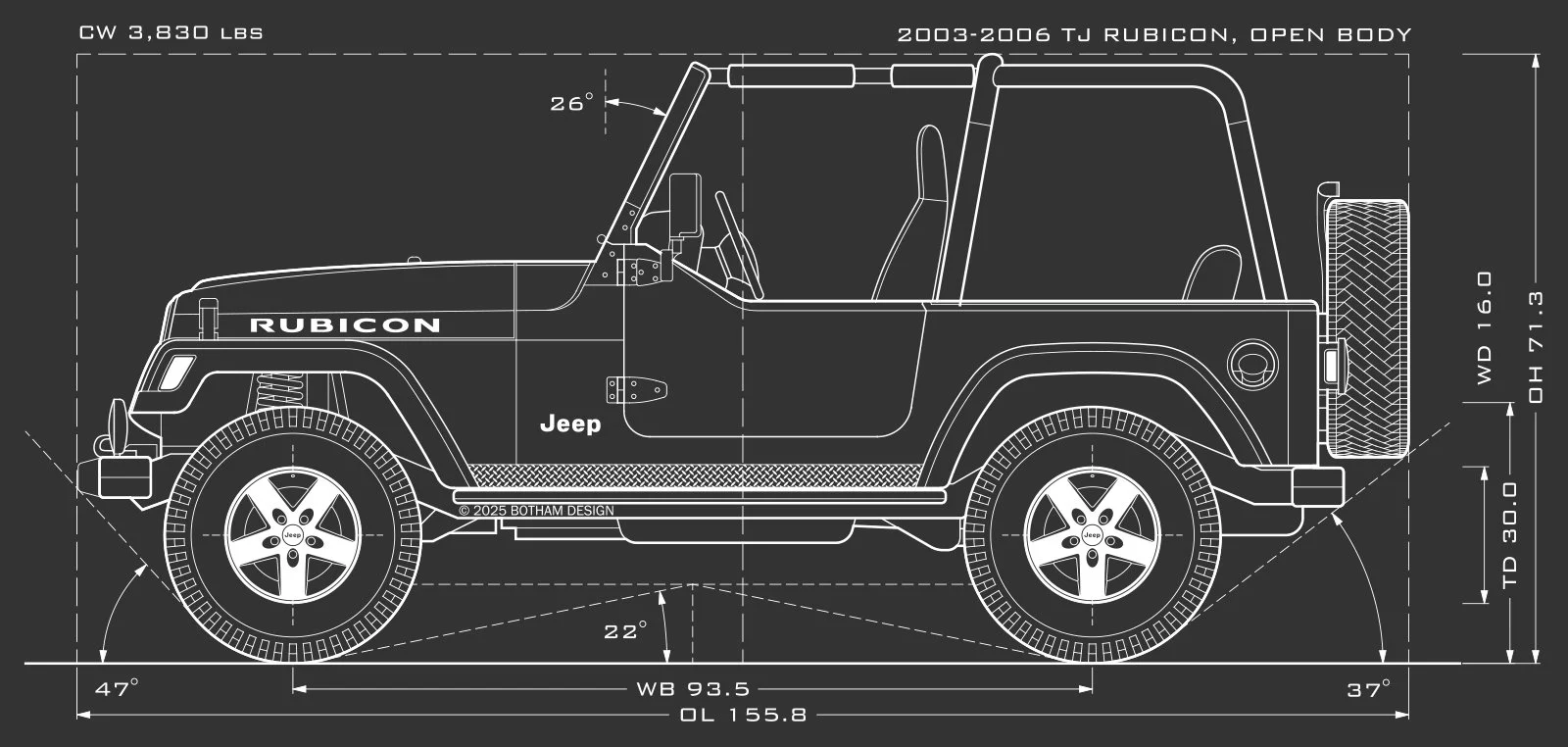

JEEP TJ SPECS
MAIN SPECS
OVERALL LENGTH (OL): 154.9
OVERALL WIDTH (OW): 68.3
OVERALL HEIGHT (OH), HARD TOP: 70.6
OVERALL HEIGHT (OH): SOFT TOP: 70.8
OVERALL HEIGHT (OH), FRAME: 69.8
WHEELBASE (WB): 93.4
TRACK WIDTH (TR): 58.5
CURB WEIGHT (CW): 3,860 lbs
WINDSHIELD ANGLE (WA): 26°
CHASSIS SPECS
GROUND CLEARANCE (GC): 10.0
APPROACH ANGLE (AA): 42°
BREAKOVER ANGLE (BA): 25°
DEPARTURE ANGLE (DA): 31°
SUSPENSION TYPE (SU): Coil Spring
WHEEL SPECS
WHEEL NAME: Grizzly Wheel
WHEEL DIAMETER (WD): 15.0
WHEEL WIDTH (WW): 7.0
BOLT PATTERN (BP): 5 x 4.5
TIRE WIDTH (TW): 9.3
TIRE DIAMETER (TD): 28.8
SPARE LOCATION: Rear Spare
All specifications refer to original stock versions
All dimensions shown in inches
Drawn by Christopher James Botham
