JEEP
Unlimited Wrangler
2011 - 2018
BASE MODEL: JKU Wrangler
ASSEMBLY: Toledo, OH, USA
UNITS PRODUCED: Unknown
JK-8
The JK-8 was an optional kit from the manufacturer which would convert an existing JKU Wrangler into a pickup truck. The kit included body panels and frame pieces, and the conversion required alteration of the original frame. The result was a 2-door pickup truck, similar to the CJ-8 Scrambler before it.

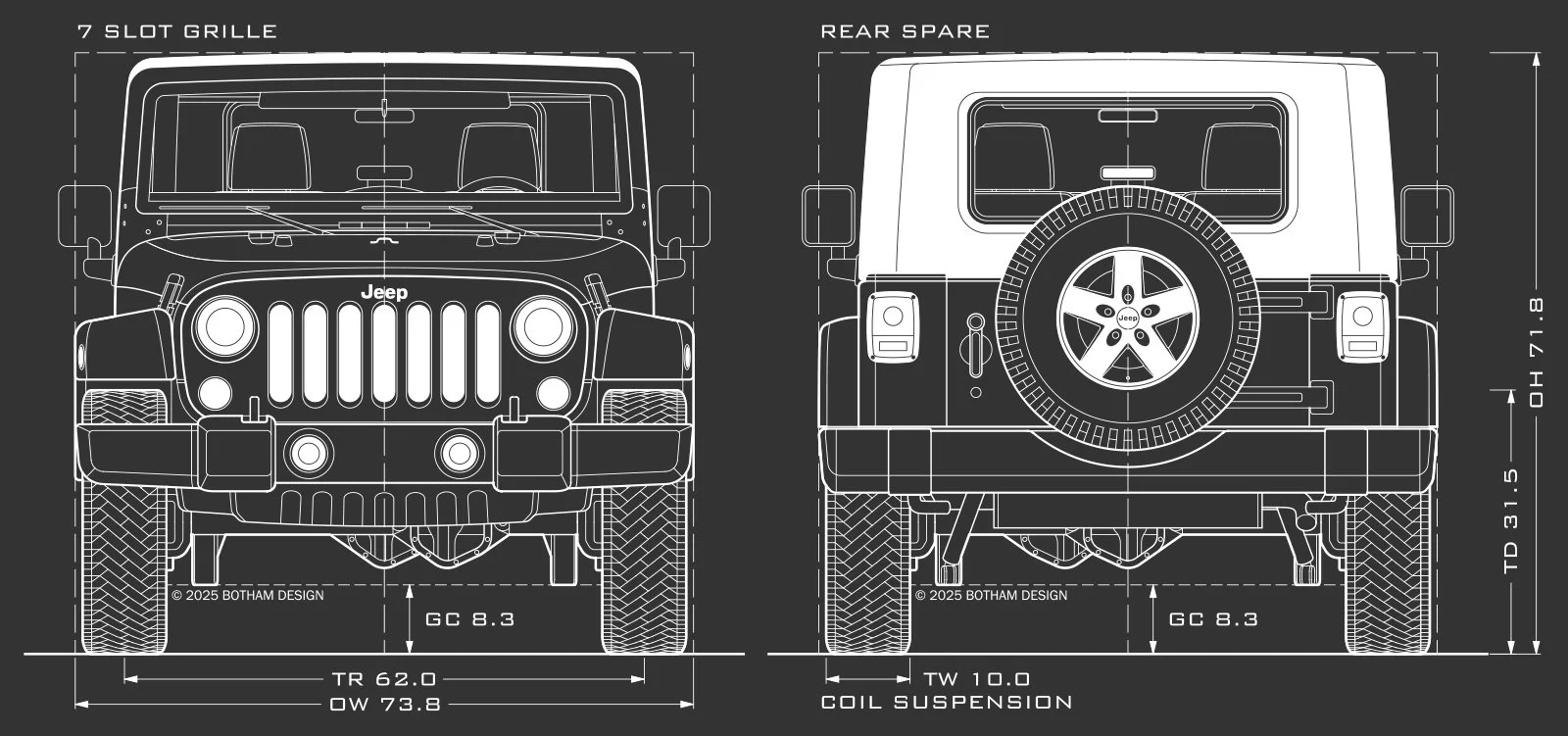

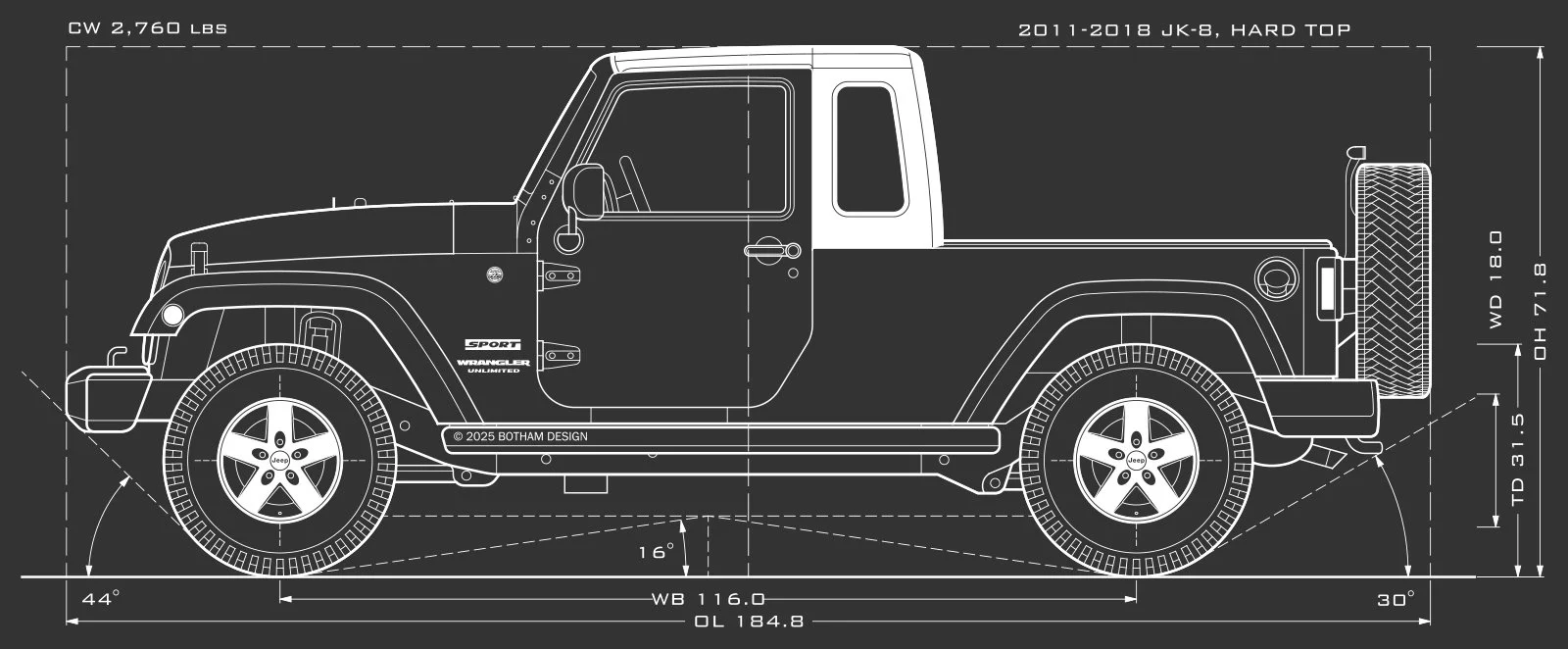

JEEP JK-8 SPECS
MAIN SPECS
OVERALL LENGTH (OL): 184.9
OVERALL WIDTH (OW): 73.7
OVERALL HEIGHT (OH), TOP UP: 72.3
WHEELBASE (WB): 116.0
TRACK WIDTH (TR): 61.9
CURB WEIGHT (CW): 4,690 lbs
WINDSHIELD ANGLE (WA): 30°
CHASSIS SPECS
GROUND CLEARANCE (GC): 10.1
APPROACH ANGLE (AA): 43°
BREAKOVER ANGLE (BA): 20°
DEPARTURE ANGLE (DA): 40°
SUSPENSION TYPE (SU): Coil Spring
WHEEL SPECS
WHEEL NAME: Sahara Wheel
WHEEL DIAMETER (WD): 18.0
WHEEL WIDTH (WW): 8.0
BOLT PATTERN (BP): 5 x 5
TIRE WIDTH (TW): 10.0
TIRE DIAMETER (TD): 32.1
SPARE LOCATION: Rear Spare
All specifications refer to original stock versions
All dimensions shown in inches
Drawn by Christopher James Botham
