WILLYS
1953 - 1968
Civilian Version: Willys CJ-3B
ASSEMBLY: Toledo, OH, USA
UNITS PRODUCED: 300*
M-606
The M-606 jeep is the military version of the CJ-3B, built mainly for overseas military aid. Just like the CJ-3B, the M-606 has a high hood to house the Willys Hurricane engine, and its grille features the Willys logo above the slots. Unofortunately, the line is blurred between the M-606 and the CJ-3B because they share serial numbers, and the exact number of M-606’s built is just an estimate.

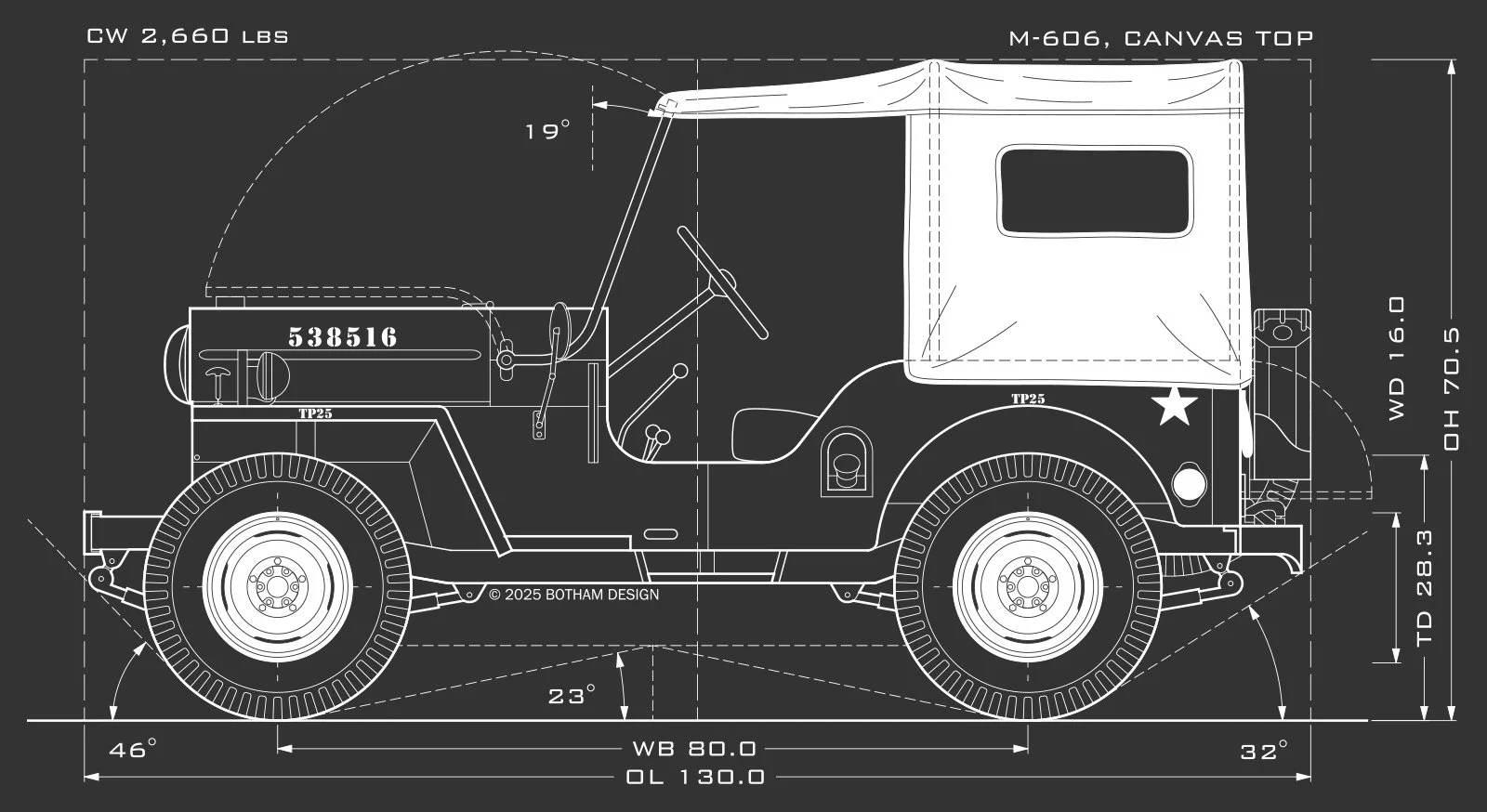

WILLYS M-606 SPECS
MAIN SPECS
OVERALL LENGTH (OL): 130.0
OVERALL WIDTH (OW): 60.9
OVERALL HEIGHT (OH), TOP UP: 69.0
OVERALL HEIGHT (OH), FRAME: 66.3
OVERALL HEIGHT (OH), MINIMUM: 52.7
WHEELBASE (WB): 80.0
TRACK WIDTH (TR): 48.5
CURB WEIGHT (CW): 2,245 lbs
WINDSHIELD ANGLE (WA): 19°
CHASSIS SPECS
GROUND CLEARANCE (GC): 8.8
APPROACH ANGLE (AA): 46°
BREAKOVER ANGLE (BA): 23°
DEPARTURE ANGLE (DA): 32°
SUSPENSION TYPE (SU): Leaf Spring
WHEEL SPECS
WHEEL NAME: Combat Wheel
WHEEL DIAMETER (WD): 16.0
WHEEL WIDTH (WW): 4.5
BOLT PATTERN (BP): 5 x 5.5
TIRES: 6.50x16 NDT
TIRE WIDTH (TW): 7.7
TIRE DIAMETER (TD): 28.5
SPARE LOCATION: Side Spare
All specifications refer to original stock versions
All dimensions shown in inches
Drawn by Christopher James Botham
