WILLYS

DISPATCHER
1955 - 1965

BASE MODEL: CJ-3A
A.K.A. The Delivery Jeep

ASSEMBLY: Toledo, OH, USA
UNITS PRODUCED: 13,500

DJ-3A

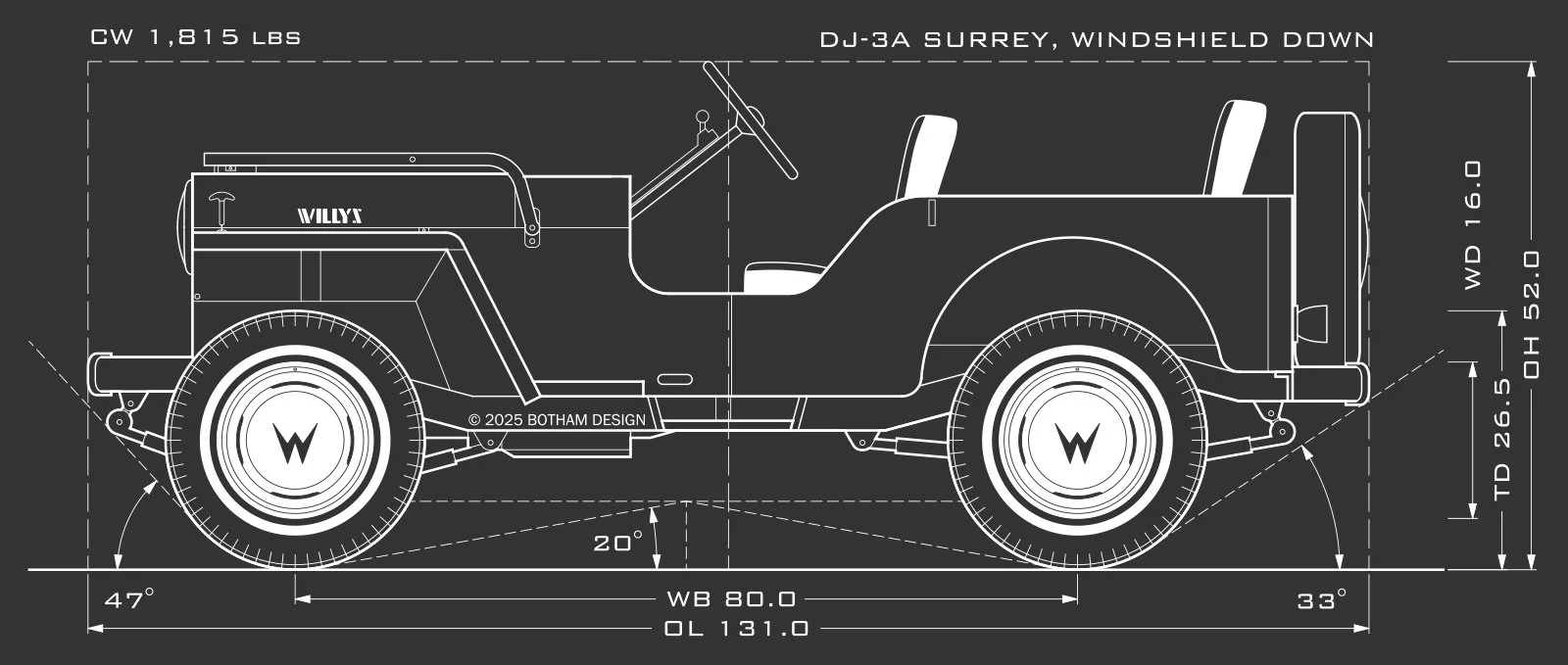

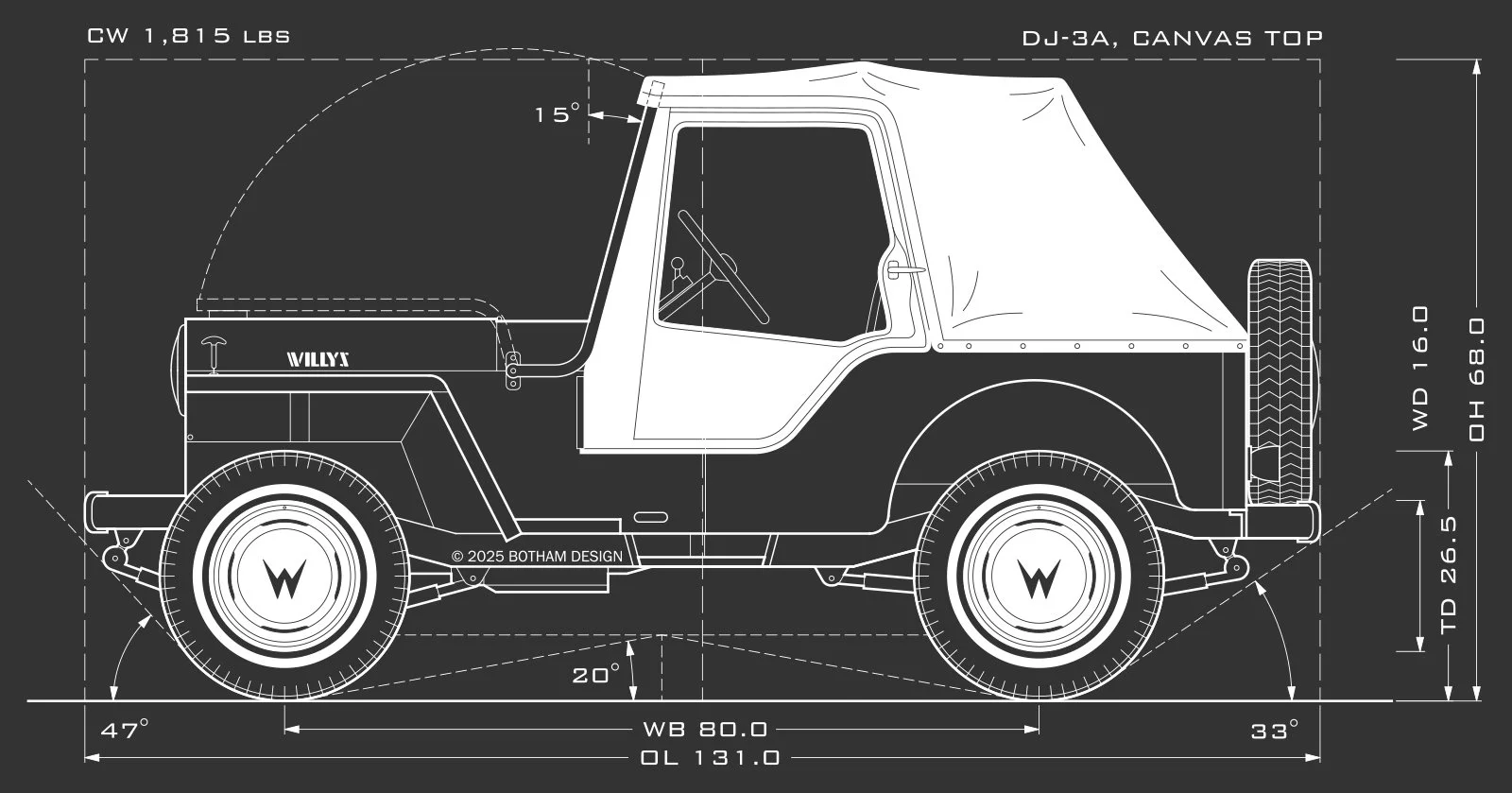

DJ Jeeps were referred to as Dispatcher jeeps, hence the ‘D’ in the prefix. The ‘3A’ suffix corresponds to the CJ-3A, which was the base model for the DJ-3A. The DJ-3A was the first 2-wheel drive jeep, which was less expensive than its 4-wheel drive cousins, and it was marketed as a recreational vehicle. DJ Jeeps came with various top options, including steel hard tops, canvas soft tops, full-steel cabs (DJ-3A Dispatcher), and soft canopies (DJ-3A Surrey).

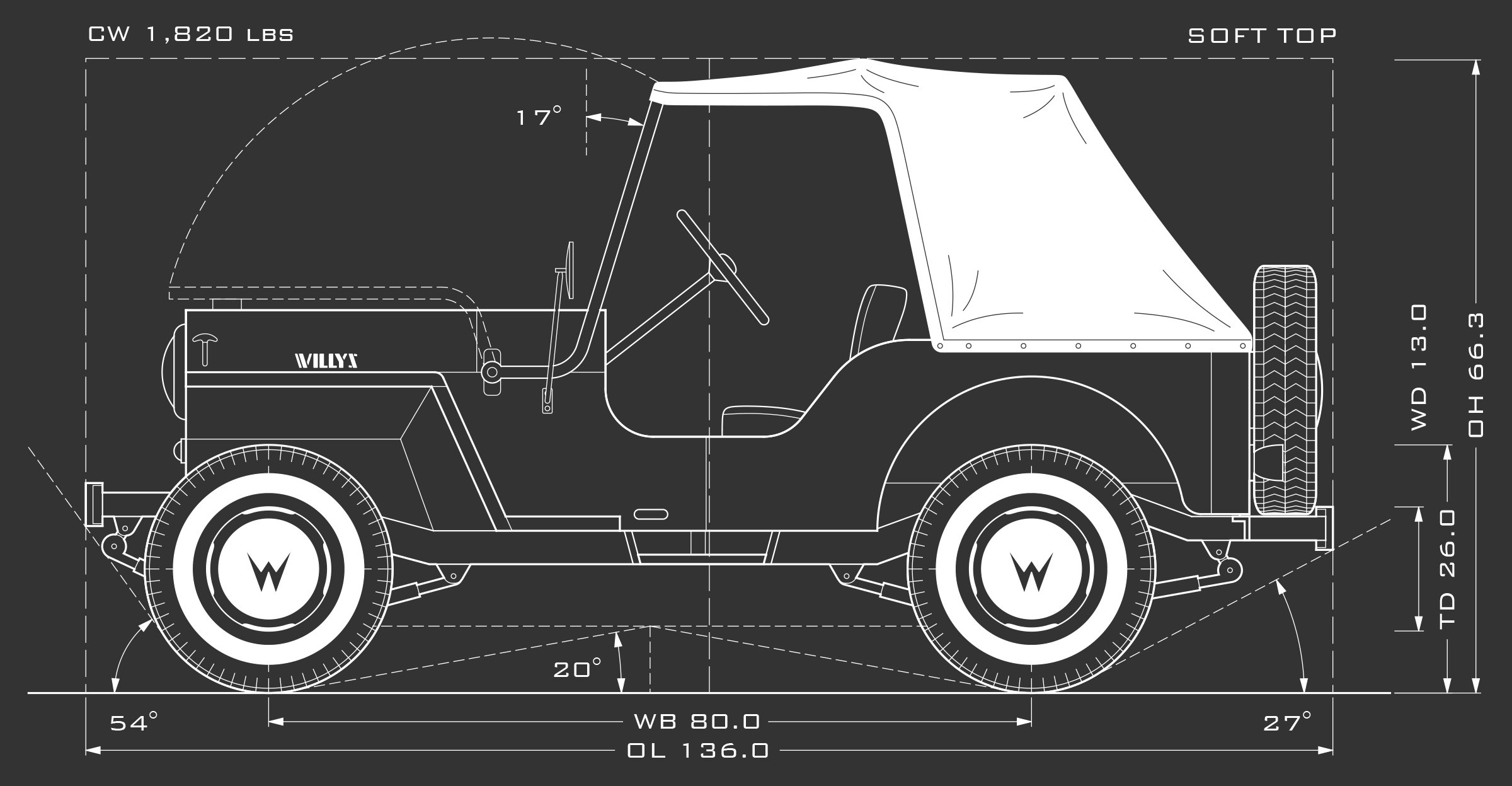

DJ-3A SPECS

MAIN SPECS
OVERALL LENGTH (OL): 136.0
OVERALL WIDTH (OW): 60.7
OVERALL HEIGHT (OH), TOP UP: 66.3
OVERALL HEIGHT (OH), NO TOP: 63.7
OVERALL HEIGHT (OH), FRAME: 50.6
WHEELBASE (WB): 80.0
TRACK WIDTH (TR): 48.3
CURB WEIGHT (CW): 1,820 lbs
WINDSHIELD ANGLE (WA): 17°

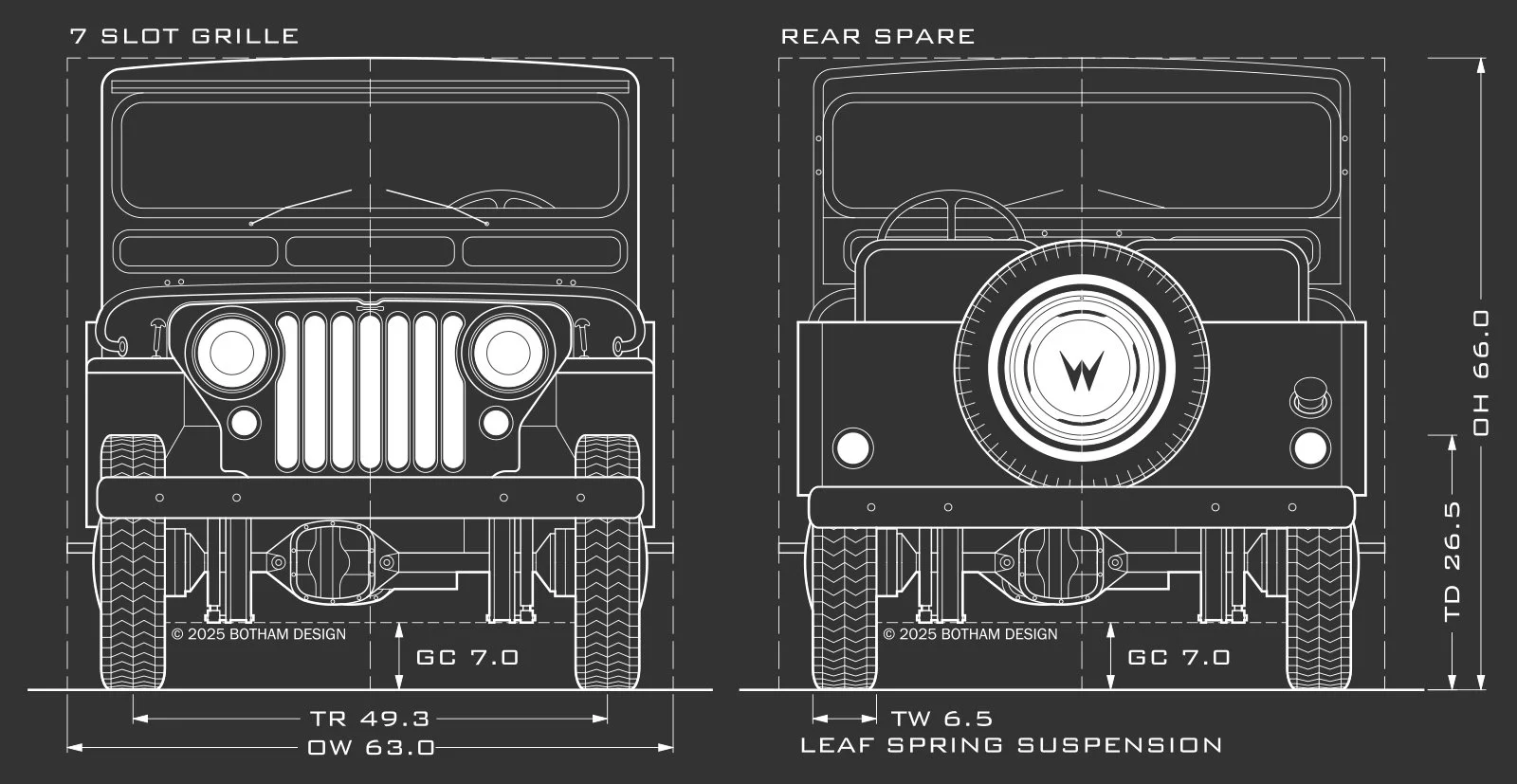

CHASSIS SPECS
GROUND CLEARANCE (GC): 7.0
APPROACH ANGLE (AA): 54°
BREAKOVER ANGLE (BA): 20°
DEPARTURE ANGLE (DA): 27°
SUSPENSION TYPE (SU): Leaf Spring

WHEEL SPECS
WHEEL NAME: Dispatcher Wheel
WHEEL DIAMETER (WD): 15.0
WHEEL WIDTH (WW): 4.5
BOLT PATTERN (BP): 4 x 5.5
TIRES: 6.50x15
TIRE WIDTH (TW): 6.5
TIRE DIAMETER (TD): 26.0
SPARE LOCATION: Rear Spare

All specifications refer to original stock versions

All dimensions shown in inches

Drawn by Christopher James Botham
